51 45... Removing and installing/replacing bottom left dashboard trim panel

When working on trim panel components, make sure that visible surfaces are not scratched or damaged (e.g. by sharp-edged tools).

Necessary preliminary tasks:

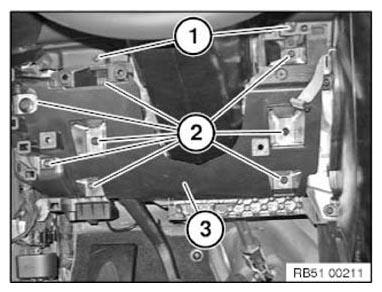

Undo screws (1) and (2) from support for dashboard trim panel (3).

Fig 1: Identifying Dashboard Trim Panel Support And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

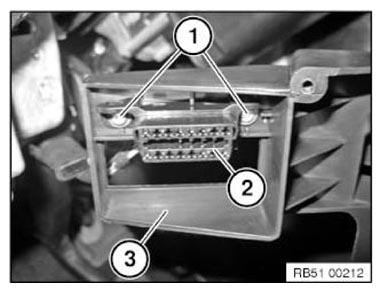

Undo screws (1) from diagnostic socket carrier plate.

Feed diagnostic socket (2) out of support for dashboard trim panel (3).

Fig 2: Identifying Diagnostic Socket, Dashboard Trim Panel Support, And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement

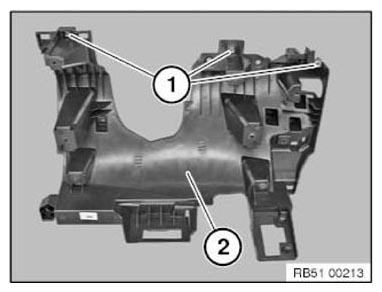

Fit speed nuts (1) on support for dashboard trim panel (2).

Fig 3: Identifying Speed Nuts On Dashboard Trim Panel Support

Courtesy of BMW OF NORTH AMERICA, INC.
