65 13 080 Removing and installing/replacing speaker (tweeter, rear door, left or right)

Necessary preliminary work:

• Remove REAR DOOR TRIM PANEL

Disconnect plug connection (3).

Unclip resistor (2).

Release nuts at marked points.

Remove speaker (1) from door trim panel (4).

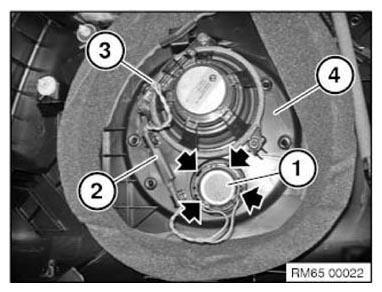

Fig 1: Identifying Plug Connection, Resistor, Speaker And Door Trim Panel

Courtesy of BMW OF NORTH AMERICA, INC.
