616040 Adapter cable

NOTE: (V adapter cable set (5 pieces)) Elo/ELA connector system for electrical test on separated plug connections (e.g. on Electronic Damper Control (EDC)) - Elo=electronic contact/ELA=strand sealing

Storage Location: D116

G110

SI number: 02 02 94 (807)

Consisting of:

1 = 0492876 Adapter cable

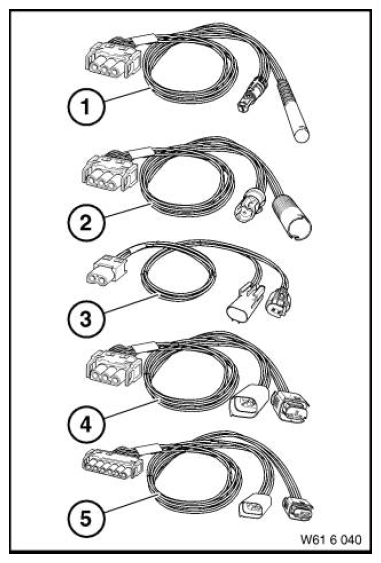

Fig 1: Identifying Adapter Cable (616040)

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: (V adapter cable (Elo/strand sealing), 3-pin, round (EDC)), discontinued, available as part of set of special tools only

2 = 0492877 Adapter cable

NOTE: (V adapter cable (Elo/ELA), 3-pin, round, zero-encoded)

3 = 0492878 Adapter cable

NOTE: (V adapter cable (Elo/ELA), 2-pin, oval, zero-encoded)

4 = 0492879 Adapter cable

NOTE: (V adapter cable (Elo/ELA), 3-pin, oval, zero-encoded)

5 = 0492880 Adapter cable

NOTE: (V adapter cable (Elo/ELA), 4-pin, oval, zero-encoded)

9 = 0492881 Operating instructions
