614343 Crimping tool

Minimum set: Measuring and testing equipment MP

NOTE: Universal crimping head for contacts up to a conductor cross-section of 0.35 - 2.5 mm2 (replaces special tool 61 4 328 as from 03/2010)

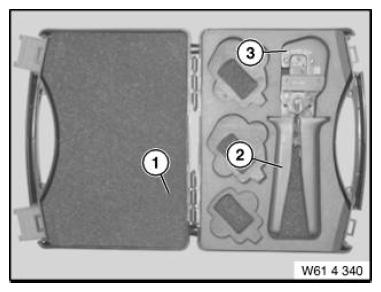

Fig 1: Identifying Crimping Tool (614343)
G11011739Courtesy of BMW OF NORTH AMERICA, INC.
