614340 Crimping tool

Minimum set: Measuring and testing equipment MP

NOTE: Universal crimping head for contacts for a conductor cross-section of 0.35 - 2.5 mm² (without seal). From 03/2010 replacement for the former special tool 61 4 328. Delivered with handle in a case as set. The die for NanoMQS-contacts (2 407 378) is stored in this plastic case.

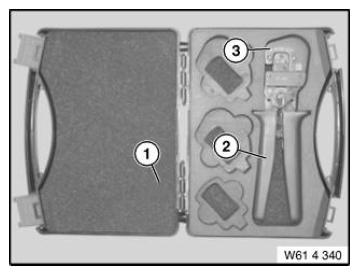

Fig 1: Identifying Crimping Tool (614340)

Courtesy of BMW OF NORTH AMERICA, INC.

SI number: 02 01 10 (615)

Consisting of:

1 = 0496848 Case

NOTE: For storing 61 4 342 and 61 4 343

2 = 0496849 Handle

3 = 0496850 Crimping tool

NOTE: Universal crimping head for contacts up to a conductor cross-section of 0.35 - 2.5 mm² (replaces special tool 61 4 328 as from 03/2010)
