614320 Crimping tool

Minimum set: Measuring and testing equipment MP

NOTE: (Crimping set with pliers) For optical fibres and cable repairs. As from 06/2006 extended by universal crimping head 61 4 328 . As from 03/2010 61 4 328 will be removed from the set and can be ordered separately under 61 4 340 . As from 03/2010 61 4 322 will be replaced by 61 4 329 . As from 03/2010 61 4 326 will only be available as a replacement.

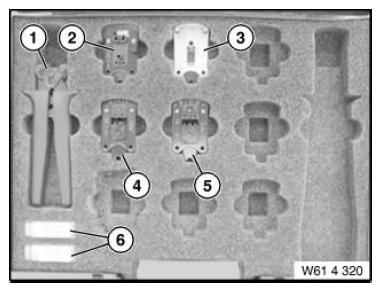

Fig 1: Identifying Crimping Tool (614320)

Courtesy of BMW OF NORTH AMERICA, INC.

Storage Location: individual

SI number: 01 14 01 (766)

Consisting of:

1 = 0494159 Handle

NOTE: Basic handle for crimping heads

2 = 0494160 Crimping tool

NOTE: (Crimping head) For stripping insulation and cutting optical fibre to length Replaced as from 03/2010 by 61 4 329 (0 496 847).

3 = 0494161 Crimping tool

NOTE: (Crimping head) For crimping optical fibre contacts

4 = 0494162 Crimping tool

NOTE: (Crimping head) For crimping MQS contacts

6 = 0494164 Supplement

NOTE: (Replacement blade) For face-cutting optical fibres. From 03/2006, no longer included in the set but individually available as a replacement set. Replacement blade only suitable for 61 4 322 .

5 = 0494178 Crimping tool

NOTE: (crimping head) For crimping MPQ contacts

7 = 0494320 Supplement

NOTE: (Replacement knife) With tool for changing blades in stripping unit. Must be ordered separately, not included in set! Discontinued as from 03/2010.

8 = 0495555 Crimping tool

NOTE: (Universal crimping head) For crimping contacts (without seal) and cable cross-sections from 0.35 - 2.5 mm. As from 03/2010 61 4 328 will not longer be supplied in the set. Order by way of separate special tool number 61 4 340 .

2 = 0496847 Crimping tool

NOTE: Replaces special tool 61 4 322 as of 03/2010. Can be ordered separately again as of 04/2012.
