2407625 Adapter

MP

NOTE: Connection of the EoS tester to the 24-pin communication connection of the high-voltage battery unit

SI number: 08 07 15 (266)

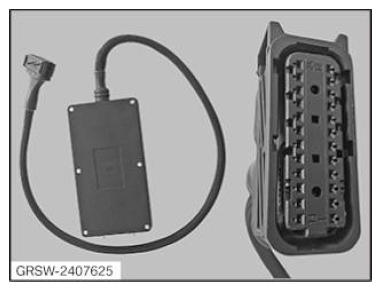

Fig 1: Identifying Adapter (2407625)
G11011664Courtesy of BMW OF NORTH AMERICA, INC.
