51 22 090 Removing and installing/replacing door lock in left or right rear door

Special tools required:

Necessary preliminary tasks:

Completely close side window if necessary
Partially remove SOUND INSULATION (in area of door lock)

Open expanding rivet (2) and lever out of cover (1) using special tool 00 9 325 .

Feed out cover (1) and place to one side.

Fig 1: Pulling Out Door Lock Cover Using Special Tool (00 9 325)

Courtesy of BMW OF NORTH AMERICA, INC.

Remove adhesive tape.

Release nut (1) of guide rail.

Tightening torque 51 35 3AZ .

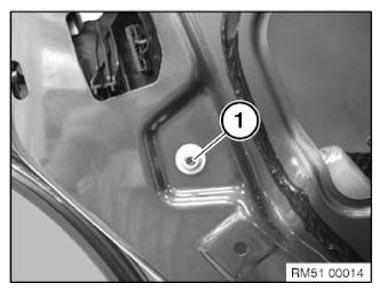

Fig 2: Identifying Guide Rail Nut

Courtesy of BMW OF NORTH AMERICA, INC.

Release lower nut (1) of guide rail.

Tightening torque 51 35 3AZ .

Fig 3: Identifying Guide Rail Lower Nut

Courtesy of BMW OF NORTH AMERICA, INC.

Feed rubber window seal (2) out of guide rail (1).

Feed guide rail (1) out of inner door panel and place to one side.

Fig 4: Identifying Rubber Window Seal And Guide Rail

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect Bowden cable at bottom (1) and then from top (3) at door lock (2).

Installation note:

Bowden cable must be correctly engaged in fixture at bottom (1) and top (3) of door lock (2).

Fig 5: Disconnecting Bowden Cable From Door Lock

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip locking rod (1).

Disconnect plug connection (2) on door lock.

Release screws (3) on door lock.

Feed out door lock (4).

Fig 6: Identifying Door Lock, Locking Rod, Screws, And Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Install door lock and insert screws (1), do not tighten down.
Slide special tool 51 2 190 into opened rotary striker until striker engages in first stage

Fig 7: Sliding Special Tool (51 2 190) Into Opened Rotary Striker

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Pre-tension door lock (1) with knurled screw (2) until special tool 51 2 190 just contacts corner points (3)

IMPORTANT: To tension door lock (1), it is only permitted to tighten knurled screw (2) by a further 1 to 1.5 turns (max.) (risk of damage).
Door lock seal must rest uniformly on inner door panel (water ingress).

Fig 8: Installing Door Lock Using Special Tool (51 2 190)

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten screws of door lock

Observe tightening sequence: bottom - top - inner.

Tightening torque 51 22 3AZ .
