22 11 095 Removing and installing/replacing holder with rubber mount

Necessary preliminary work:

• Remove UNDERBODY PROTECTION .

Undo bolts (1) and remove bracket (2) with rubber mount.

Tightening torque 22 11 6AZ/9AZ

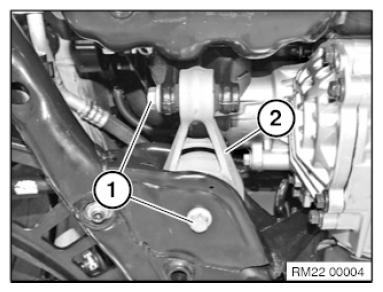

Fig 1: Identifying Rubber Mount Bracket And Bolts

Courtesy of BMW OF NORTH AMERICA, INC.
