361090 Fitting aid

Minimum set: Mechanical tools AM

NOTE: (installation accessory for runflat tires)

Storage Location: Individual

SI number: 01 19 00 (634)

Consisting of:

1 = 0493865 Tool

NOTE: (mounting lever)

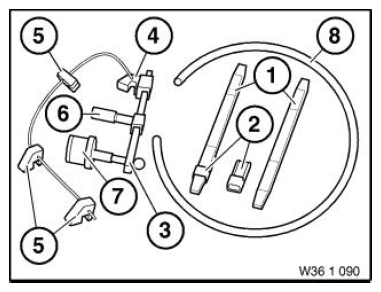

Fig 1: Identifying Fitting Aid (361090)

G11011509

Courtesy of BMW OF NORTH AMERICA, INC.

2 = 0493866 Guard

NOTE: (plastic guard)

3 = 0493867 Holder

NOTE: (bead hold-down device base unit)

4 = 0493868 Shaped element

5 = 0493870 Shaped element

6 = 0493871 Pin

NOTE: (lock pin)

7 = 0493872 Adapter

NOTE: Adapter) Replaced by 00 9 120 (0 490 504)

8 = 0493873 Hose
