51 12 070 Replace the center spoiler on rear bumper panel

WARNING: This page is about a different car, the 2016 MINI Cooper Paceman, 2015 MINI Cooper Paceman, 2014 MINI Cooper Paceman, and 2013 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove BUMPER PANEL

Release expanding rivets (1) on left/right.

Release all catches (2) and remove spoiler (3).

Installation note:

Replace expanding rivets (1).

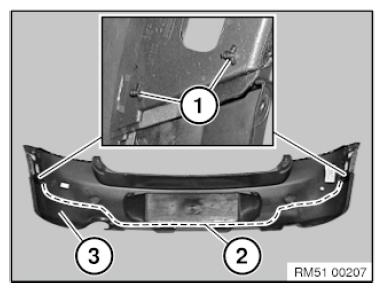

Fig 1: Identifying Catches And Expanding Rivets

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Latch mechanisms (1) on spoiler (2) must not be damaged.

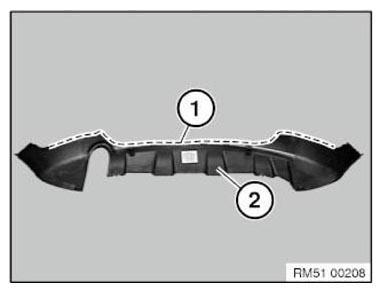

Fig 2: Identifying Latch Mechanisms On Spoiler

Courtesy of BMW OF NORTH AMERICA, INC.
