51 21 300 Removing and installing or replacing window cavity cover strip on outside of left or right front door
WARNING: This page is about a different car, the 2016 MINI Cooper Paceman, 2015 MINI Cooper Paceman, 2014 MINI Cooper Paceman, and 2013 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.
Special tools required:
IMPORTANT:
Observe PROCEDURE for using special tool 00 9 324
.
The "INSTRUCTIONS ON FITTING WINDOW GUIDE SEALS " serve as the basis for this repair instruction and must be observed without fail.
The "INSTRUCTIONS ON FITTING WINDOW GUIDE SEALS " serve as the basis for this repair instruction and must be observed without fail.
Necessary preliminary tasks:
- Completely open side window if necessary
IMPORTANT:
If reusing the existing window cavity cover strip (1), make sure it is not bent.

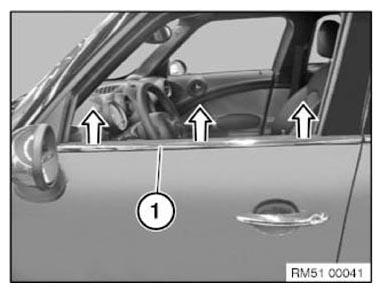

Lever out weather strip (1) with special tool 00 9 324 (starting at B-pillar).
Installation note:
Coat weather strip (1) prior to fitting with APPROVED LUBRICANT .
