51 21 225 Removing and installing or replacing inside door opener in left or right front door

Necessary preliminary tasks:

• Remove DOOR OPENER COVER (INSIDE)
• Remove BOWDEN CABLE FOR INSIDE DOOR OPENER .

With welded fastening version only (original):

Drill out plastic welds (2).

Lever out and remove inside door opener (1).

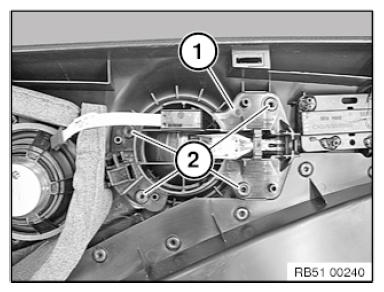

Fig 1: Identifying Inside Door Opener And Plastic Welds

Courtesy of BMW OF NORTH AMERICA, INC.

With clamped fastening version only (repair solution):

Lever out axial locks (2).

Remove inside door opener (1).

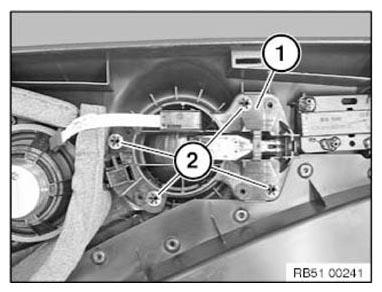

Fig 2: Identifying Inside Door Opener And Axial Locks

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Secure inside door opener (1) with repair solution axial locks (2).

Existing axial locks (2) can be reused if they are not damaged.

Replacement

For version with light package only:

• Modify LED FOR INSIDE DOOR HANDLE

Fig 3: Identifying Inside Door Opener And Axial Locks

Courtesy of BMW OF NORTH AMERICA, INC.
