51 47 030 Removing and installing/replacing rear left door sill cover strip

WARNING: This page is about a different car, the 2016 MINI Cooper Paceman, 2015 MINI Cooper Paceman, 2014 MINI Cooper Paceman, and 2013 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 325

Necessary preliminary tasks:

Remove REAR SIDE TRIM PANEL
Disengage the END FITTING

Move front seat forwards/up completely.

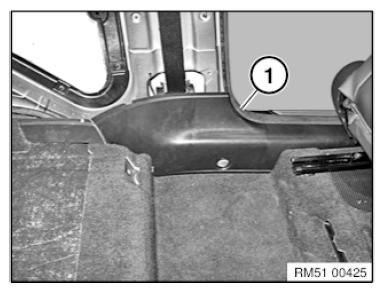

Detach edge protection (1) in area of door sill cover strip.

Fig 1: Identifying Door Sill Cover Strip Edge Protection

Courtesy of BMW OF NORTH AMERICA, INC.

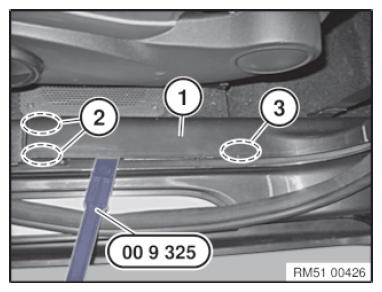

Disengage the door sill cover strip (1) from the guides (2) and retaining lug (3) with the special tool 00 9 325 .

Fig 2: Disengaging Door Sill Cover Strip From Guides And Retaining Lug

Courtesy of BMW OF NORTH AMERICA, INC.

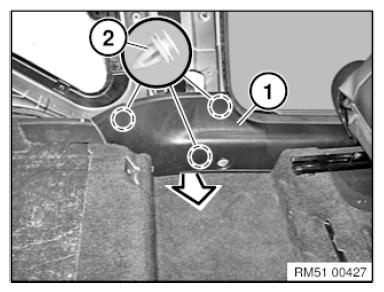

Release the door still cover strip (1) from the clips (2) in direction of arrow.

Carefully lever out door sill cover strip (1).

Fig 3: Releasing Door Still Cover Strip From Clips

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

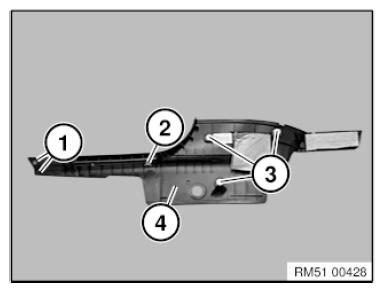

The guides (1) and retaining lug (2) from the trim panel (4) must not be damaged.

The clips (3) from the trim panel (4) must not be damaged or missing.

Replace faulty clips (3).

Fig 4: Identifying Trim Panel, Guides And Retaining Lug

Courtesy of BMW OF NORTH AMERICA, INC.
