41 31 100 Replacing roof outer skin with panorama glass roof

Read contents of BODY, GENERAL .

STRIP DOWN  vehicle

Follow procedure for REPAIR STAGE 2 .

• (1) Roof outer skin panel, panorama glass sunroof
Fig 1: Identifying Panorama Glass Roof Outer Skin
Courtesy of BMW OF NORTH AMERICA, INC.

The following CONSUMABLES  are required:

Removing roof outer skin

Operation is partially described on the left side.

Right side identical.

Open welded connections in areas (1).

Open spot-welded adhesive joints in area (2)

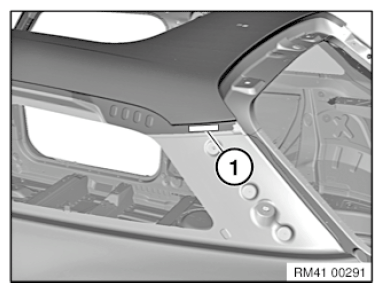

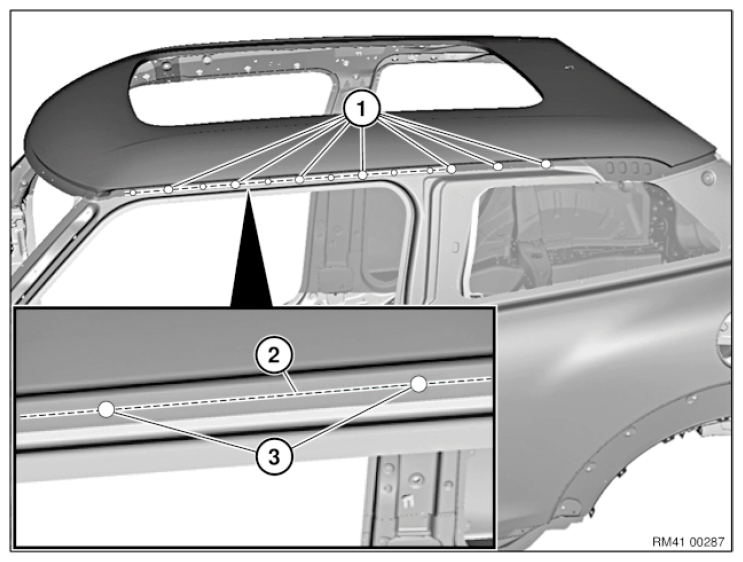

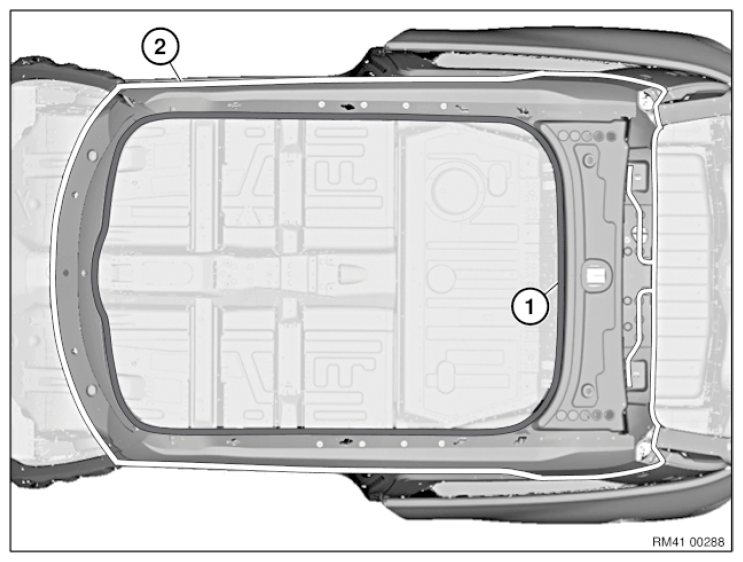

Fig 2: Identifying Spot-Welded Adhesive Joints Area And Welded Connections Areas

Courtesy of BMW OF NORTH AMERICA, INC.

Open welded connections in areas (1).

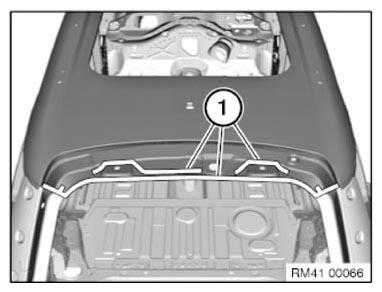

Fig 3: Identifying Welded Connections Areas

Courtesy of BMW OF NORTH AMERICA, INC.

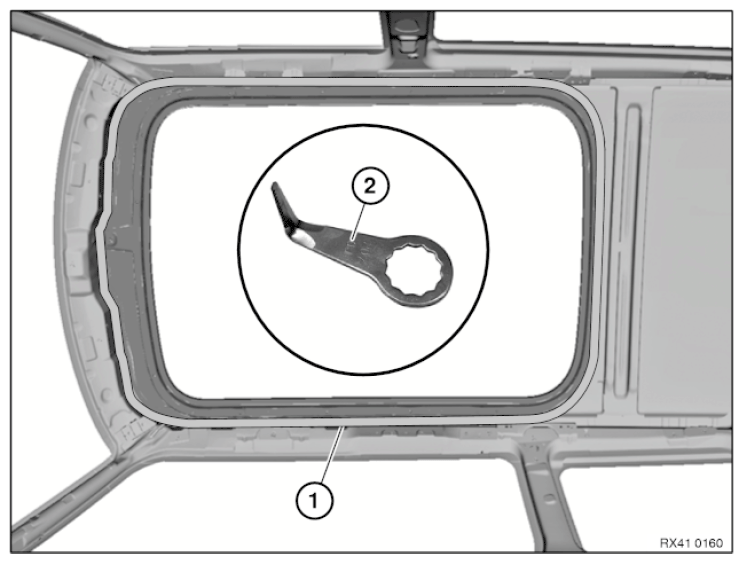

Loosen bonded connections in the areas (1) with an oscillating knife (2) (compare with removal of windscreen).

Take off roof outer skin.

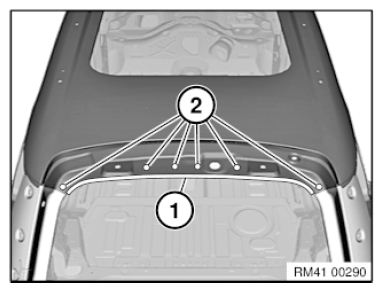

Fig 4: Identifying Bonded Connections Areas And Oscillating Knife

Courtesy of BMW OF NORTH AMERICA, INC.

New part preparation

Operation is partially described on the left side. Right side identical.

Adjust roof outer skin to fit and secure.

Set two 4.2 mm diameter bore holes for blind rivets in area (1).

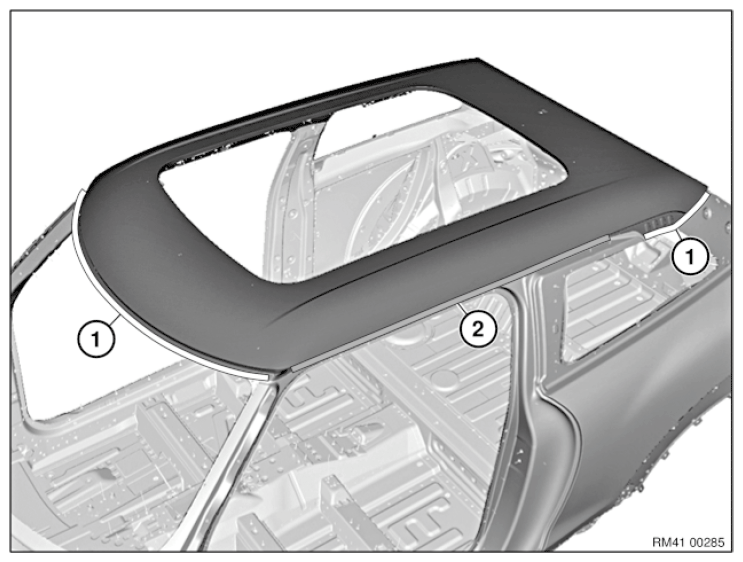

Fig 5: Identifying Blind Rivets Area

Courtesy of BMW OF NORTH AMERICA, INC.

In areas (1), set 7 4.2 mm dia. holes for blind rivets.

Remove new part again and deburr bore holes.

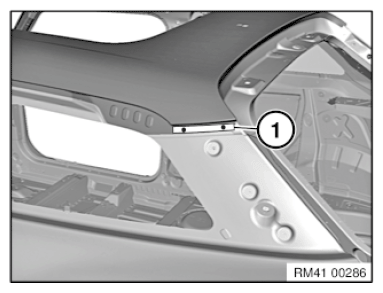

Fig 6: Identifying Blind Rivets Area

Courtesy of BMW OF NORTH AMERICA, INC.

Installing roof outer skin

Clean all  bonding surfaces with cleaning agent R1.

In area (1), apply sealant D1 in same way as standard procedure.

Apply adhesive in areas (2).

Install roof outer skin and rivet with blind rivets.

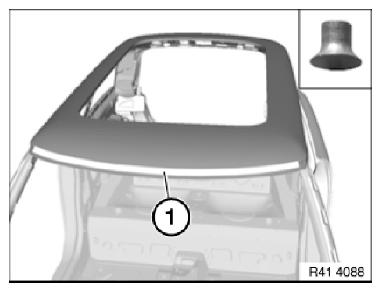

Fig 7: Identifying Adhesive Areas And Sealant Area

Courtesy of BMW OF NORTH AMERICA, INC.

In area (1), rivet roof outer skin with 8 punch rivets N5  .

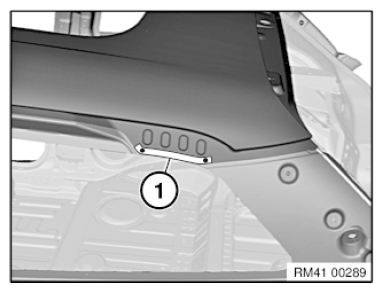

Fig 8: Identifying Punch Rivets Area

Courtesy of BMW OF NORTH AMERICA, INC.

In area (1), rivet roof outer skin with 2 punch rivets N5  .

Fig 9: Identifying Punch Rivets Area

Courtesy of BMW OF NORTH AMERICA, INC.

In area (1), rivet roof outer skin with 8 punch rivets N5  .

Use 6 punch rivets N5  in areas (2).

Fig 10: Identifying Punch Rivets Areas

Courtesy of BMW OF NORTH AMERICA, INC.

Install hinges for tailgate until the adhesive has hardened.

Avoid contact between adhesive and hinges.

Remove excess adhesive.

Seal adhesive areas and blind rivets with sealant D1.

After adhesive has hardened in area (1), fit an EMC SCREW .

Fig 11: Identifying EMC Screw Installation Area
