41 12 557 Stripping operations - Replacing center luggage compartment floor, all-wheel drive vehicle (tail panel removed)

WARNING: This page is about a different car, the 2016 MINI Cooper Paceman, 2015 MINI Cooper Paceman, 2014 MINI Cooper Paceman, and 2013 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Owing to the different engine variants and equipment specifications, not all the components are taken into consideration.
The following list basically represents the removal sequence.
Vehicles with four-wheel drive

Remove rear axle final drive (job number: 33 10 016)

Remove heat shield (1).

Release wiring harness (2) from luggage compartment floor.

Release vent hose (3) from luggage compartment floor.

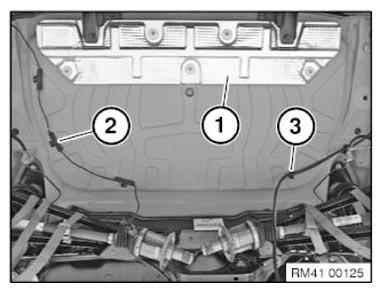

Fig 1: Identifying Heat Shield, Vent Hose, And Luggage Compartment Floor Wiring Harness

Courtesy of BMW OF NORTH AMERICA, INC.
