24 11 012 Removing and installing/sealing or replacing transmission oil sump (AISIN)

WARNING: This page is about a different car, the 2016 MINI Cooper Paceman, 2015 MINI Cooper Paceman, 2014 MINI Cooper Paceman, and 2013 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT:

Do not let skin come in contact with transmission oil and do not inhale fuel vapors.
Wear protective gloves.
Ensure adequate ventilation.

IMPORTANT: Remove transmission oil sump only after it has cooled down.
After completion of repair work, check TRANSMISSION OIL LEVEL .
Use only the approved AUTOMATIC TRANSMISSION OIL in this transmission.

Otherwise the automatic transmission may incur extensive damage!

NOTE: Record the quantity of drained transmission oil.

Required replenishment quantity approx. 4.5 liters.

Recycling:

Catch and dispose of escaping automatic transmission fluid.

Observe country-specific waste disposal regulations.

Necessary preliminary tasks:

Secure engine in INSTALLATION POSITION .

Raise engine and transmission.

Remove underbody protection.

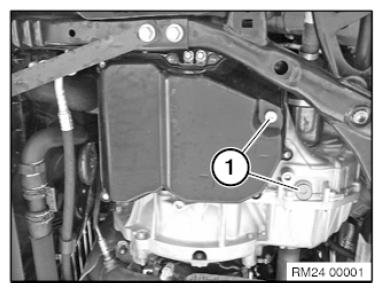

Release screws (1).

Drain off transmission fluid.

Installation note:

Tightening torque 24 11 1AZ .

Replace gaskets.

Fig 1: Identifying Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Screw sump tube (1) out of transmission oil sump and drain remaining transmission oil.

Fig 2: Identifying Sump Tube

Courtesy of BMW OF NORTH AMERICA, INC.

Release Torx screw (1).

Remove remaining mounting bolts from transmission oil sump and remove sump.

Remove oil sump gasket.

Clean sealing surfaces.

Tightening torque 24 11 3AZ .

Installation note:

Replace gasket.

Fig 3: Identifying Torx Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Clean sump magnets (1) and insert in new transmission oil sump.

Screw sump tube (2) into new transmission oil sump.

Measurement A: 37.35 - 38.05 mm

Tightening torque 24 11 1AZ .

IMPORTANT: Do not tighten sump tube too tightly.

Fig 4: Identifying Sump Magnets And Sump Tube

Courtesy of BMW OF NORTH AMERICA, INC.
