24 21 515 Replacing radial shaft seal for drive shaft (AISIN)

WARNING: This page is about a different car, the 2016 MINI Cooper Paceman, 2015 MINI Cooper Paceman, 2014 MINI Cooper Paceman, and 2013 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

NOTE: TRANSMISSION removed!

Remove TORQUE CONVERTER

Drive a hole into radial shaft seal using a center punch.

IMPORTANT: Do not use a drill as drillings may result in transmission malfunction.

Thread special tool 23 0 490 into radial shaft seal (1).

Drive out radial shaft seal (1) with impact weight (2).

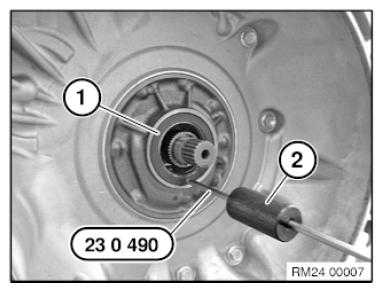

Fig 1: Threading Special Tool (23 0 490) Into Radial Shaft Seal

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Clean sealing surface.

Lubricate sealing lip of shaft seal with clean transmission oil.

Push radial shaft seal (1) onto special tool 24 4 250 and drive it in all the way.

IMPORTANT: Do not damage shaft seal (1).

Fig 2: Installing Radial Shaft Seal

Courtesy of BMW OF NORTH AMERICA, INC.
