24 21 230 Removing radial shaft seal of right axle shaft (AISIN) all-wheel drive vehicle N18

WARNING: This page is about a different car, the 2016 MINI Cooper Paceman, 2015 MINI Cooper Paceman, 2014 MINI Cooper Paceman, and 2013 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

IMPORTANT: After completion of work check GEARBOX OIL LEVEL and for leaks.
The vehicle must be parked on a level surface in the 095 workshop to check the transmission oil level.
Use only the Use only the approved AUTOMATIC TRANSMISSION OIL .

Failure to comply with this instruction will result in serious damage to the transmission.

Recycling:

Catch and dispose of escaping transmission oil.

Observe country-specific waste disposal regulations

Necessary preliminary tasks:

Remove TRANSFER BOX .
Remove GEARBOX

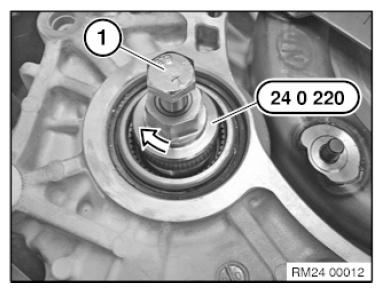

Screw in special tool 24 0 220 to the radial shaft seal (small diameter) .

Screw in bolt (1) and pull out radial shaft seal.

Fig 1: Screwing Special Tool (24 0 220) To Radial Shaft Seal (Small Diameter)

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Risk of damage:
Damage to the transmission housing will result in oil leaks!

Installation note:

Coat sealing lips of new radial shaft seal with clean transmission oil.

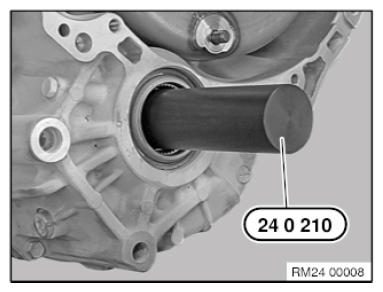

Using special tool 24 0 210 drive in radial shaft seal (small diameter) into housing.

Fig 2: Installing Radial Shaft Seal Into Housing Using Special Tool (24 0 210) - Small Diameter

Courtesy of BMW OF NORTH AMERICA, INC.

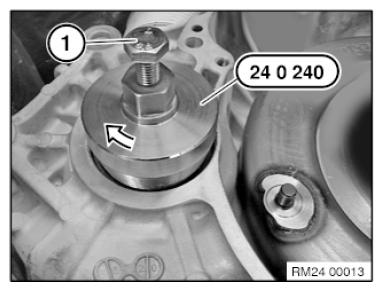

Screw in special tool 24 0 240 to the radial shaft seal (large diameter) .

Screw in bolt (1) and pull out radial shaft seal.

Fig 3: Installing Special Tool (24 0 240) To Radial Shaft Seal - Large Diameter

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Risk of damage:
Damage to the transmission housing will result in oil leaks!

Installation note:

Coat sealing lips of new radial shaft seal with clean transmission oil.

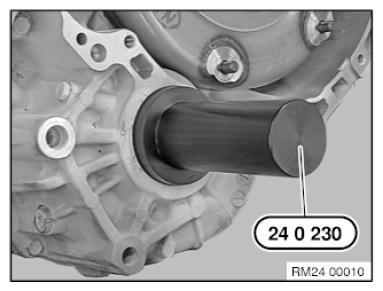

Using special tool 24 0 230 drive in radial shaft seal (large diameter) into housing.

Fig 4: Driving Radial Shaft Seal (Large Diameter) Into Housing Using Special Tool (24 0 210)

Courtesy of BMW OF NORTH AMERICA, INC.
