23 11 211 Replacing right radial shaft seal on differential (GS6X-53BG/DG) all-wheel drive vehicle

WARNING: This page is about a different car, the 2016 MINI Cooper Paceman, 2015 MINI Cooper Paceman, 2014 MINI Cooper Paceman, and 2013 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

IMPORTANT: After completion of repair work, check transmission oil level.
The vehicle must be parked on a level surface in the workshop to check the transmission oil level.
Use only the approved TRANSMISSION OIL .

Failure to comply with this instruction will result in serious damage to the transmission.

Recycling:

Catch and dispose of escaping transmission oil.

Observe country-specific waste disposal regulations

Necessary preliminary tasks:

Remove TRANSFER BOX (PTO)

Screw special tool 23 0 420 into radial shaft seal.

Screw in bolt (1) and pull out radial shaft seal.

IMPORTANT: Risk of damage:
Damage to the transmission housing will result in oil leaks!

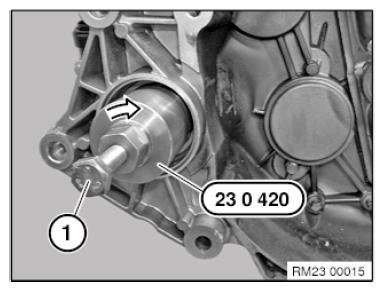

Fig 1: Screwing Special Tool (23 0 420) Into Radial Shaft Seal

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Coat sealing lips of new radial shaft seal with clean transmission oil.

Using special tool 23 0 340 , drive radial shaft seal into housing.

Check transmission oil level and check for leak.

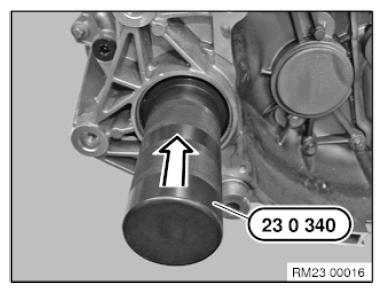

Fig 2: Driving Radial Shaft Seal Into Housing Using Special Tool (23 0 340)
