13 53 180 Removing and installing/replacing pressure line (Continental high pressure pump) (N18) up to production date 03/2012

WARNING: This page is about a different car, the 2016 MINI Cooper Paceman, 2015 MINI Cooper Paceman, 2014 MINI Cooper Paceman, and 2013 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

32 1 270

WARNING: Disconnect NEGATIVE BATTERY TERMINAL (risk of fire due to short circuit on dismantling).
Carry out installation work on fuel system only with coolant temperature below 40 °C.

IMPORTANT: Wear full face guard and protective gloves.
Fuel can emerge spontaneously at high speed when the high pressure line is released!

IMPORTANT: Adhere to conditions of absolute cleanliness when working on the high-pressure fuel system.
Introduced dirt contamination can cause malfunctions in the system!

Do not allow any dirt particles or foreign bodies to get into the system.
Remove all traces of dirt before removing lines or separate components.
Use only fluff-free cloths.
Seal all fuel system openings with protective caps or plugs.

Necessary preliminary tasks:

Remove INTAKE SILENCER HOUSING .

Recycling:

Fuel escapes when fuel lines are detached.

Catch and dispose of escaping fuel.

Observe country-specific waste disposal regulations.

NOTE: Hold the connection piece with an open-ended spanner (2) while releasing pressure line (1).

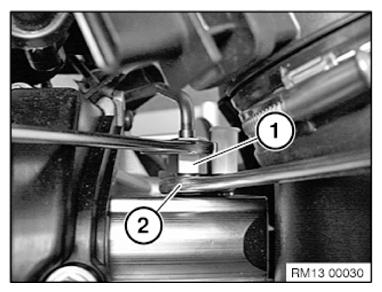

Fig 1: Releasing Pressure Line Using Open-End Spanner

Courtesy of BMW OF NORTH AMERICA, INC.

Removal:

Slacken nut (1).

Unscrew nut (3).

Disconnect pressure line (2).

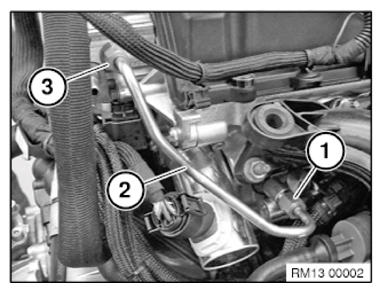

Fig 2: Identifying Pressure Line And Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

Seal high-pressure rail and high-pressure pump with fitting plugs (1) from special tool kit 32 1 270 .

Fig 3: Sealing High Pressure Rail And High Pressure Pump Using Special Tool

Courtesy of BMW OF NORTH AMERICA, INC.

Installation of pressure line is described separately from removal.

Hold the connection piece with an open-ended spanner (2) while tightening pressure line (1).

Fig 4: Releasing Pressure Line Using Open-End Spanner

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

The procedure described below must be followed precisely (to avoid leaks):

Preassemble pressure line (2), only hand-tighten nuts (3 and 1).
When tightening screw connections, first tighten nut (1) and then nut (3).
Tighten nuts (1 and 3) according to tightening specifications 13 53 1AZ .
Check fuel system for TIGHTNESS .

Fig 5: Identifying Pressure Line And Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.

Check function of DME.
