26 12 011 Replacing grooved ball bearing in propeller shaft center bearing

WARNING: This page is about a different car, the 2016 MINI Cooper Paceman, 2015 MINI Cooper Paceman, 2014 MINI Cooper Paceman, and 2013 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 7 500
23 2 430

Necessary preliminary work:

Replace PROPELLER SHAFT CENTER BEARING

Install special tool 00 7 500 between deep groove ball bearing (1) and propeller shaft (2).

Using a hydraulic press, force deep groove ball bearing (1) off propeller shaft (2).

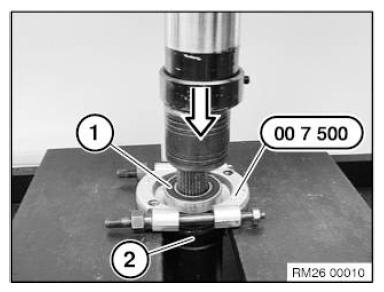

Fig 1: Installing Special Tool (00 7 500) Between Deep Groove Ball Bearing And Propeller Shaft

Courtesy of BMW OF NORTH AMERICA, INC.

Use special tool 23 2 430 to press new deep groove ball bearing (1) on to propeller shaft (2).

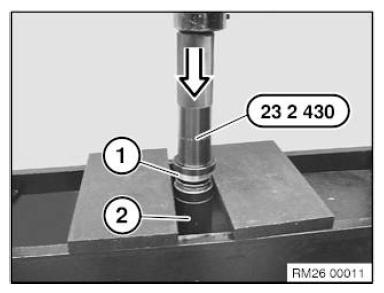

Fig 2: Pressing Deep Groove Ball Bearing On Propeller Shaft Using Special Tool (23 2 430)

Courtesy of BMW OF NORTH AMERICA, INC.
