51 13 106 Removing and installing/replacing cover (wheel arch) at rear door, left or right

Special tools required:

Do not scratch or damage visible surfaces.

Lever out rubber covers (1).

Release screws (2) below.

Tightening torque 51 77 1AZ .

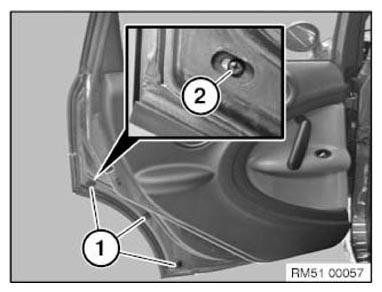

Fig 1: Identifying Rubber Covers And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Clip out cover (1) using special tool 00 9 325 beginning at the bottom.

When doing this, guide special tool 00 9 325 along outer door edge to the respective clip.

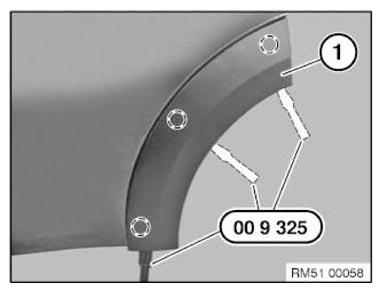

Fig 2: Pulling Out Cover Using Special Tool (00 9 325)

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Sheet metal nuts (1) and clips (2) must not be missing or damaged.

Replacement

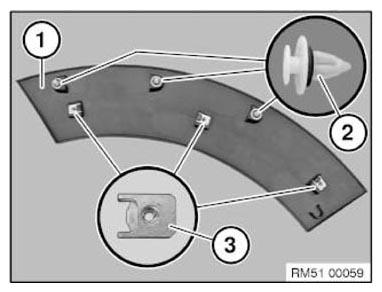

Fig 3: Identifying Sheet Metal Nuts And Clips

Courtesy of BMW OF NORTH AMERICA, INC.
