51 43 251 Removing and installing or replacing trim panel for left or right rear roof pillar (C-pillar)

Special tools required:

WARNING:

Vehicles with head airbags:

Read and comply with SAFETY PRECAUTIONS for working on vehicles with airbag systems.

IMPORTANT: Do not use any sharp-edged tools to remove the trim panels (risk of damage to head airbag).

Detach edge protection (3) in area of trim panel (1).

Detach trim panel (1) from clip (2) using special tool 00 9 325 .

Remove trim panel (1) downwards.

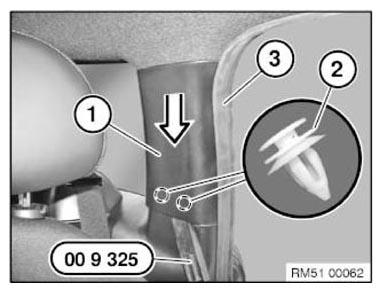

Fig 1: Detaching Trim Panel With Special Tool (00 9 325)

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Make sure edge protection (3) is correctly seated.

Installation note:

Guides (1) on trim panel (3) must not be damaged.

Replace clips (2).

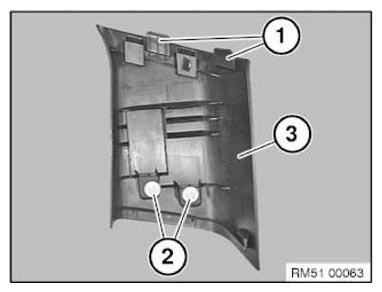

Fig 2: Identifying Guides And Clips On Trim Panel

Courtesy of BMW OF NORTH AMERICA, INC.
