51 12 100 Removing and installing/replacing rear number plate support

Necessary preliminary work:

Release latch mechanisms (1) and remove cover (2).

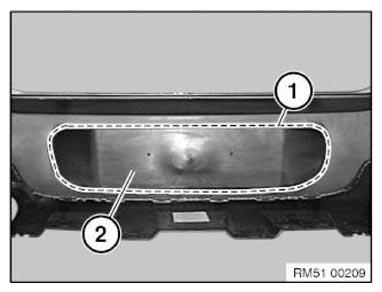

Fig 1: Identifying Rear Number Plate Support Latch Mechanisms And Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Latch mechanisms (1) on bumper panel (2) must not be damaged.

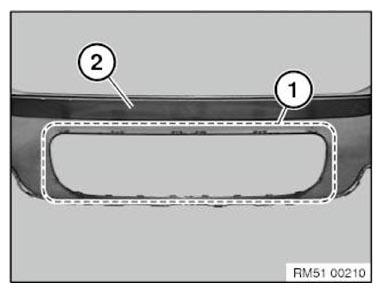

Fig 2: Identifying Latch Mechanisms On Bumper Panel

Courtesy of BMW OF NORTH AMERICA, INC.
