11 41... Installing repair kit for oil pump solenoid valve wiring (N16, N18)

IMPORTANT: Only one repair kit may be installed.

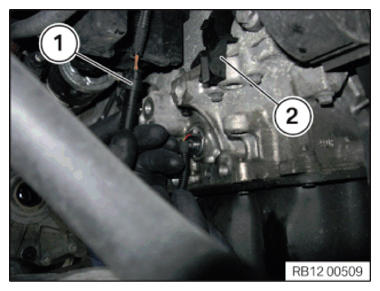

NOTE: Repair kit is identifiable from the individual wires (green/red) (1) and the black coating of the cable duct (2).

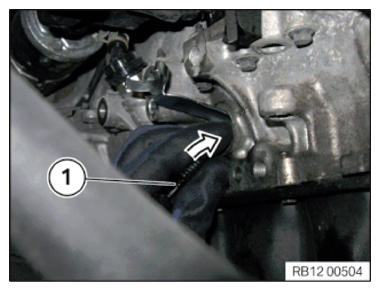

Fig 1: Identifying Repair Kit Green/Red Wires And Black Coating Of Cable Duct

Courtesy of BMW OF NORTH AMERICA, INC.

Necessary preliminary work:

Remove right output shaft. See REPLACING RIGHT OUTPUT SHAFT or REPLACING RIGHT OUTPUT SHAFT (ALL-WHEEL DRIVE VEHICLE) .
All-wheel drive vehicle with manual gearbox only: Remove transfer box
Remove BOTTOM ENGINE BLOCK HOLDER

All vehicles:

Release screw (1).

Remove sealing plate (2).

Unfasten plug connection (3) and disconnect.

Unclip cable from cable clip.

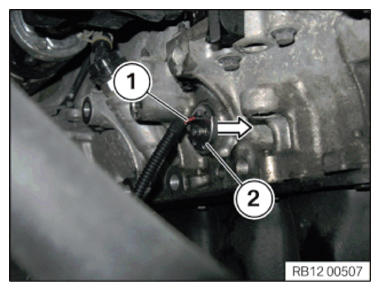

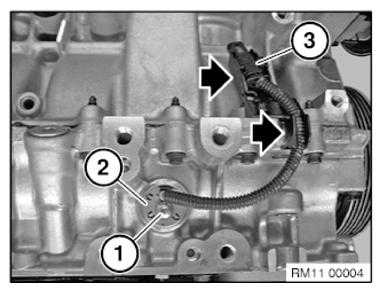

Fig 2: Locating Oil Plug Solenoid Valve Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

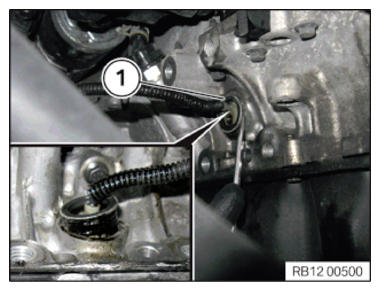

Lever out sealing ring (1).

Feed out and remove sealing ring (1).

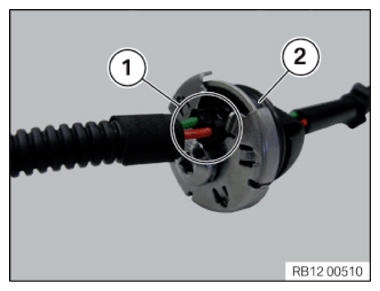

Fig 3: Identifying Sealing Ring

Courtesy of BMW OF NORTH AMERICA, INC.

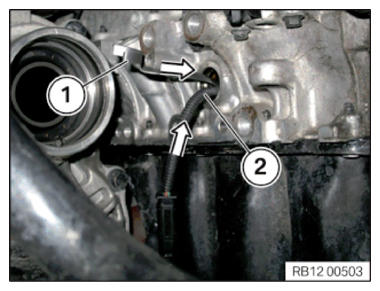

Loosen bolt (1) by approx. 2 rotations.

Connect new cable duct (2) to previous cable duct (3).

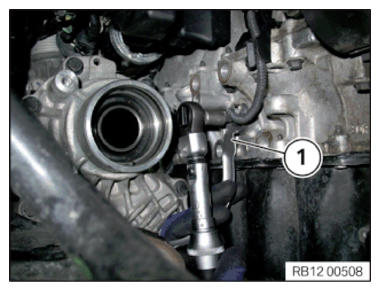

Fig 4: Identifying Cable Ducts And Bolt

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Previous cable duct remains in oil sump.

Slide in previous cable duct (1) into oil sump by using supplied tool (2).

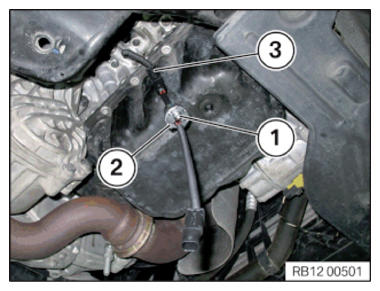

Fig 5: Sliding In Previous Cable Duct Into Oil Sump Using Supplied Tool

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Schematic diagram of all-wheel drive vehicle.

Insert tool (1) and previous cable duct (2) as deep as possible past oil deflector.

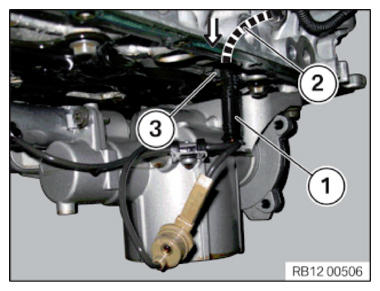

Fig 6: Inserting Tool And Previous Cable Duct In Oil Deflector

Courtesy of BMW OF NORTH AMERICA, INC.

Insert cable with plug connection (1).

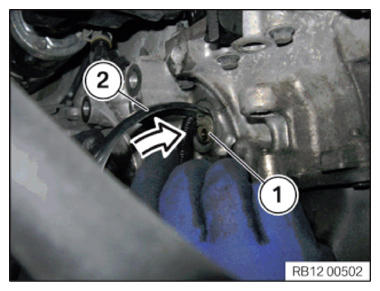

Fig 7: Inserting Cable With Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

To make sure that connector housing (1) was inserted past oil deflector, cable (2) must point downwards and may not be kinked.

Remove tool.

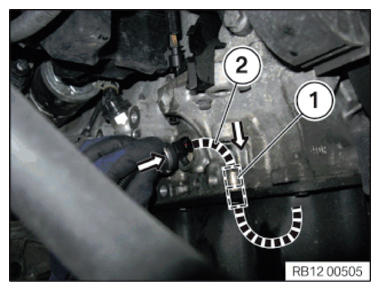

Fig 8: Identifying Cable Position

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Oil sump shown removed for purposes of clarity.

Connector housing
Cable
Oil deflector

Fig 9: Identifying Connector Housing, Cable And Oil Deflector

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Cable outlet (1) must point upwards.

Press in new cable duct (2) into crankcase until it is felt to engage.

Fig 10: Pressing Cable Duct Into Crankcase

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Schematic diagram of all-wheel drive vehicle.

Insert tool (1) into recesses of sealing plate.

Hold handle vertically and counter support.

Screw sealing plate.

Tightening torque 11 41 5AZ .

Fig 11: Inserting Tool Into Recesses Of Sealing Plate

Courtesy of BMW OF NORTH AMERICA, INC.

If necessary, RETROFIT ADDITIONAL WIRING HARNESS FOR OIL PUMP SOLENOID VALVE .

Establish plug connection (1) and clip in into cable clip (2).

Fig 12: Identifying Plug Connection And Cable Clip

Courtesy of BMW OF NORTH AMERICA, INC.

Reassemble the vehicle.
