41 11 300 Replacing Cover For Longitudinal Member With Left Or Right Door Pillar (Partial Replacement B-Pillar, Rear Side Panel Removed)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2010 BMW 528xi, 2010 BMW 528i, 2009 BMW 528xi, 2009 BMW 528i, and 2008 BMW 528xi. However, it is still accessible from the selected car via links, so may be relevant.

Spot-weld bonding is used on this vehicle. Observe specific procedure.

Use only approved SPOT-WELDING APPARATUS  for repairs!

Place vehicle on straightening bench.

Following new body parts are required :

Mark severance cuts in accordance with specified measurements and cut.

IMPORTANT: Cut outer plate only for following severance cuts.

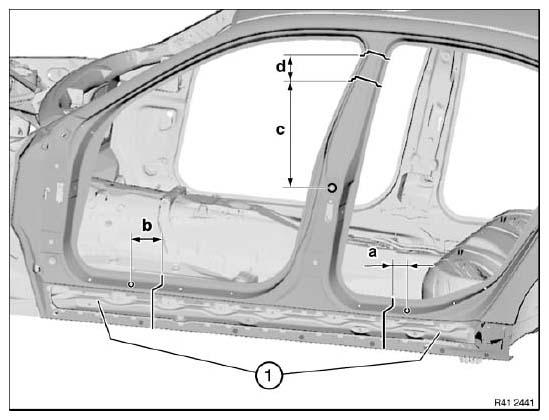

Measurement a = approx. 40 mm in front of bore dia. 6 mm.

Measurement b = approx. 90 mm behind bore dia. 6 mm.

Measurement c = approx. 460 mm above upper door hinge mounting.

Measurement d = approx. 80 mm above cut c.

Open weld joints on outer entrance attachment (1) before and after severance cuts and remove components.

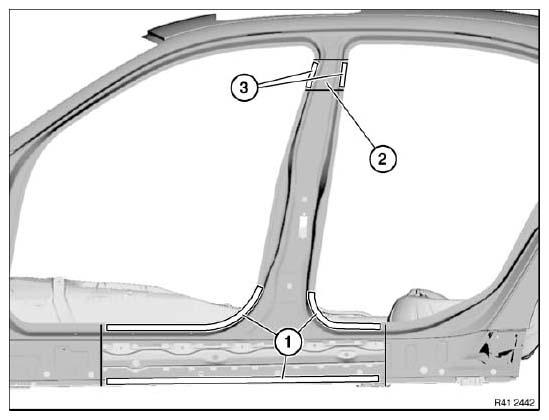

Fig 3: Open Weld Joints Areas And Metal Section
G05477157Courtesy of BMW OF NORTH AMERICA, INC.

Open weld joints in areas (1) and (3).

Remove metal section (2).

Installation:

Apply repair welding spots in area (3) to existing welding spots on new component/car. This is necessary because the adhesive between the spot flanges acts as an insulator.

Mark severance cut in accordance with specified measurement and cut.

Measurement a = 500 mm above upper door hinge mounting.

Fig 4: Upper Door Hinge Mounting Measurement
G05477158Courtesy of BMW OF NORTH AMERICA, INC.
NOTE: View from inside

Open weld joints and bonded joints in areas (1).

Fig 5: Open Weld Joints And Bonded Joints Areas
G05477159Courtesy of BMW OF NORTH AMERICA, INC.

Release cavity acoustic baffle in area (1).

Open adhesive bonds in areas (2).

Fig 6: Cavity Acoustic Baffle And Open Adhesive Bonds Area
G05477160Courtesy of BMW OF NORTH AMERICA, INC.

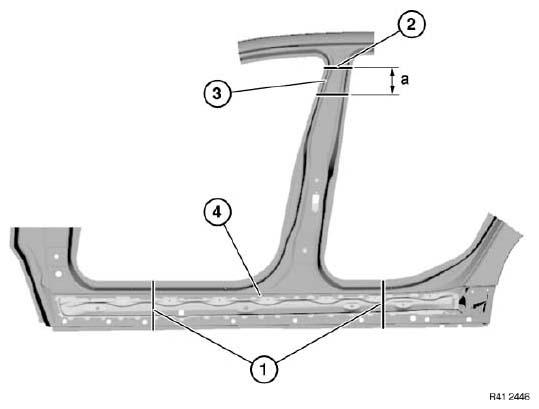

Fig 7: Mark On Severance Cuts
G05477161Courtesy of BMW OF NORTH AMERICA, INC.

Preparation of new part:

Mark severance cuts (1) on new part in accordance with previous severance cuts and cut.

IMPORTANT: Cut only outer plate at severance cut (2).

Measurement a = 80 mm below severance cut (2).

Open weld joints on sheet panel (3) and remove component.

Installation:

Cut-out sheet panel (3) is needed again to seal B-pillar.

Open weld joints on outer entrance attachment (4) between severance cuts and remove component.

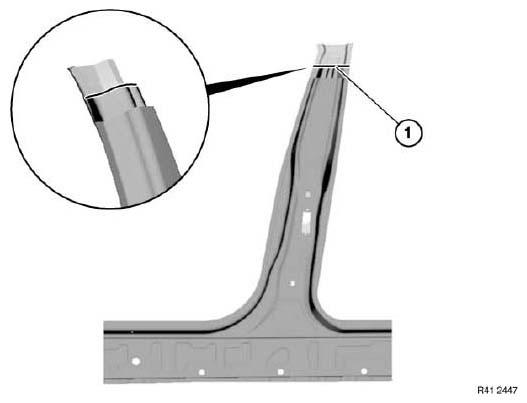

Fig 8: Mark On Severance Cuts
G05477162Courtesy of BMW OF NORTH AMERICA, INC.

Mark severance cut (1) in accordance with vehicle and cut.

IMPORTANT: Cut only outer plate at severance cut (1).

Installation:

Weld in REINFORCING PANELS  at all severance cuts.

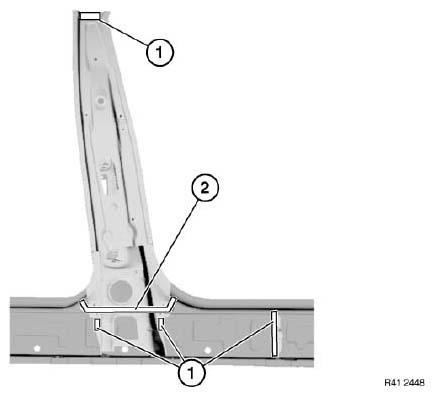

Fig 9: Adhesive And Window Glass Adhesive Apply Area
G05477163Courtesy of BMW OF NORTH AMERICA, INC.

Apply adhesive in areas (1).

Apply window glass adhesive to cavity acoustic baffle (2).

Installation information:

Adjust new part to fit with straightening attachment or universal mount.

Adjust outer entrance attachment to fit after pressing down on paintwork on body and new part.

Prepare flange area of entrance attachment for plug welding.

Hole diameter approx. 5 to 6 mm

Fig 10: Hole On Flange Area
G05477164Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Apply repair welding spots in areas (1) next to existing welding spots on new component/car.

Fig 11: Repair Welding Spots Areas
G05477165Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Bond and rivet new part in area (1).

Use Hemlock 813 blind rivet .

Double number of rivets with respect to welding spots in area (1).

Fig 12: Welding Spots Area
G05477166Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Observe the following procedure when setting the rivets:

IMPORTANT: Risk of damage!
