41 35 401 Replacing Rear Left Side Panel (Partial Replacement, Door Opening)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2010 BMW 528xi, 2010 BMW 528i, 2009 BMW 528xi, 2009 BMW 528i, and 2008 BMW 528xi. However, it is still accessible from the selected car via links, so may be relevant.

Spot-weld bonding is used on this vehicle. Observe specific procedure.

Use only approved SPOT-WELDING APPARATUS for repairs!

Following new body parts are required :

Side panel, rear
Attachment, entrance, outer
Shaped part, entrance, rear (not shown)

Fig 1: Body Parts Components
Courtesy of BMW OF NORTH AMERICA, INC.

Mark severance cut (1) at outer entrance attachment (2) in accordance with measurement a and cut.

Measurement a = approx. 60 mm behind hole dia. 15 mm.

Open weld joints on outer entrance attachment (2) and remove component.

Installation:

Weld in REINFORCEMENT PLATE at severance cut (1).

Fig 2: Mark On Severance Cut

Courtesy of BMW OF NORTH AMERICA, INC.

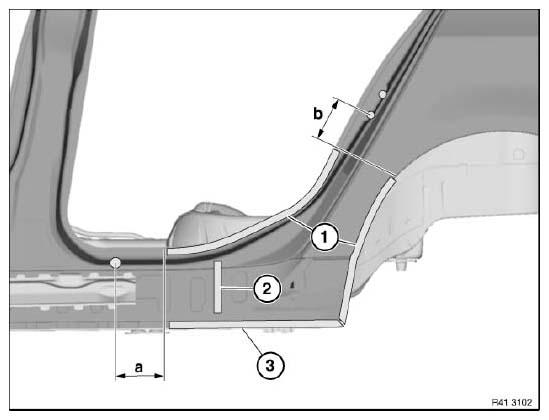

Fig 3: Mark Severance Cuts

Courtesy of BMW OF NORTH AMERICA, INC.

Mark severance cuts in accordance with specified measurements and cut.

IMPORTANT: Cut outer metal sheet only.

Distance a = approx. 150 mm behind bore dia. 6 mm.

Measurement b = approx. 120 mm from middle of lower lock striker screw point.

Open weld joints in areas (1) and (3).

NOTE: Side frame is bonded and welded to longitudinal member in area (2).

Installation information:

Weld in REINFORCEMENT PLATES at severance cuts.
Bond and rivet new part in area (3).
Use Hemlock 813 blind rivet .

Double number of rivets with respect to welding spots in area (3).

Installation information:

Apply adhesive in areas (1).

Apply window glass adhesive to cavity acoustic baffle (2).

Fig 4: Adhesive And Window Glass Adhesive Applying Area
Courtesy of BMW OF NORTH AMERICA, INC.
