41 63 003 Replacing Cover Bowl

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2010 BMW 528xi, 2010 BMW 528i, 2009 BMW 528xi, 2009 BMW 528i, and 2008 BMW 528xi. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove FLAP FOR FUEL FILLER NECK
Remove SERVODRIVE FOR TANK FILLER FLAP

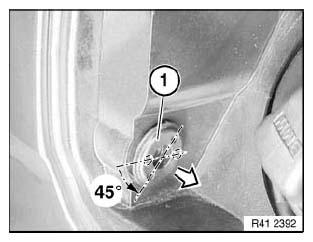

Turn cover (1) through approx. 45° and lever out in direction of arrow.

Fig 1: Turning Cover

G04728289

Courtesy of BMW OF NORTH AMERICA, INC.

Remove rubber pad (3).

Press retaining strap (1) inwards and remove.

Remove cover (2).

Lever out seal (4) inwards.

Insert a suitable tool through bores (3) and release catches.

Installation:

Make sure seal (4) is correctly seated.

IMPORTANT: If seal (4) has been removed, it must be turned inside out.

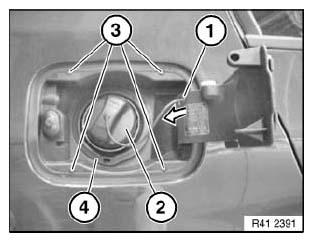

Fig 2: Retaining Strap, Rubber Pad And Cover

G04728290

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Catches (1) on ejector (2) must not be damaged.

Check protective cap (3) for correct seating.

Fig 3: Catches, Ejector And Protective Cap

G04728291

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Locks (1) on left/right of cover (2) must not be damaged.

Fig 4: Locks And Left/Right Of Cover

G04728292

Courtesy of BMW OF NORTH AMERICA, INC.

Close flap (1).

Twist cover bowl (2) in direction of arrow out of side panel and remove.

Fig 5: Twisting Cover Bowl

G04728293

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Following parts on cover bowl (6) must not be damaged or missing:

Rubber pad
Catches, top/bottom
Spring
Catch
Guide

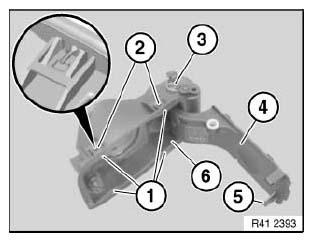

Fig 6: Rubber Pad, Catches, Top/Bottom, Spring, Catch And Guide
Courtesy of BMW OF NORTH AMERICA, INC.
