41 51 004 Adjusting Front Left Or Right Door

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2010 BMW 528xi, 2010 BMW 528i, 2009 BMW 528xi, 2009 BMW 528i, and 2008 BMW 528xi. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: The 41 00... BODY GAP DIMENSIONS serve as the basis for adjustment work.
Adjust screwed body parts from rear to front.
Make unpainted surfaces visible by also moving the hinges. Touch these up in the appropriate color.

NOTE: The following illustrations are schematic representations and are to be applied to the relevant vehicle type.

CAUTION: Do not damage adjoining body parts.
Minor corrections (realignment work) are permitted if the existing adjustment options are not sufficient.

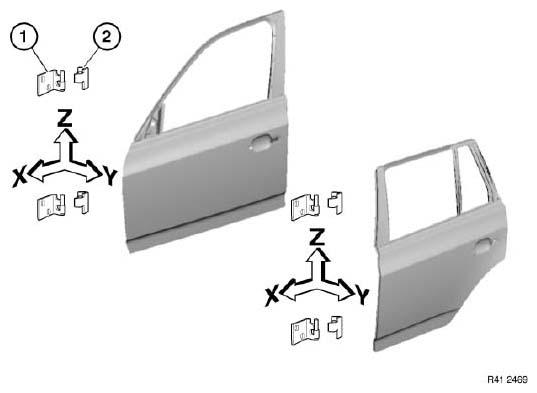

Fig 1: Adjusting Front Left Or Right Door

Courtesy of BMW OF NORTH AMERICA, INC.

Slacken screws (1) and (2) on door hinges to be adjusted at top and bottom.

Adjust door according to specified 41 00... BODY GAP DIMENSIONS .

Check that adjoining body parts are flush in terms of height and correct if necessary.

After adjustment, tighten hinge screws and nuts.

Tightening torque 41 51 2AZ .

Tightening torque 41 51 3AZ .

Fig 2: Checking Adjoining Body Parts

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: If necessary, adjust lock striker.

Slacken screws (1), adjust lock striker and tighten screws.

NOTE: Adjust lock striker approx. 90° in relation to door frame inside edge (2).
When the door is closed, the lock striker must not touch or scrape against the door lock. Look out for scratches.
