32 21 231 Replacing (removing and installing) left or right track rod

Special tools required:

32 3 210

IMPORTANT: The steering box must be replaced if the polished surface of the rack is damaged (e.g. by corrosion)!

Necessary preliminary tasks:

Remove TRACK ROD END FROM SWIVEL BEARING
Remove GAITER FROM STEERING BOX and slide back

IMPORTANT: To avoid damage to rack and to suspension mounting, move rack in as far as possible.

Release joint with special tool 32 3 210 and socket SW32 (1) on steering box rack.

Installation note:

Clean rack.

Fig 1: Releasing Joint Using Special Tool (32 3 210) And Socket SW32

Courtesy of BMW OF NORTH AMERICA, INC.

Check surface of rack for damage (e.g. corrosion).

Grease toothed area of rack (Lubricating grease FB-1: part number part number 2 208 093).

Tightening torque 32 21 3AZ .

Replacement:

IMPORTANT: On vehicles with 18" tires and/or vehicles with Sport brake, if applicable, it will be necessary to install steering stop limiters to be ordered separately!

Slide both steering stop limiters (1) onto steering linkage.

Installation note:

Deformation elements (2) must point to steering box (3).

Fig 2: Removing Steering Stop Limiters

Courtesy of BMW OF NORTH AMERICA, INC.

Tightening torque 32 21 3AZ .

On replacement, assemble new part with gaiter.

Grease track rod at the fit of the gaiter (1) with grease "FB-1 part number 2 208 093".

Fig 3: Identifying Gaiter

Courtesy of BMW OF NORTH AMERICA, INC.

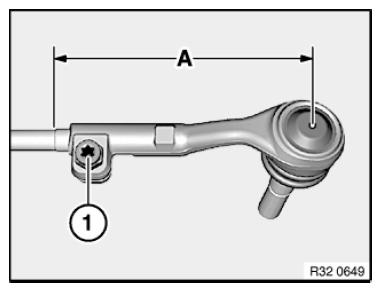

Determine dimension (A) to simplify following adjustment of front axle

Installation note:

Slacken clamping bolt (1) and screw off track rod end.

Slide gaiter with ear clip and band clamp on track rod.

Screw in track rod end to dimension (A).

Tightening torque 32 21 2AZ .

Fig 4: Identifying Track Rod End Dimension

Courtesy of BMW OF NORTH AMERICA, INC.

After installation:

Only if replacing/removing track rod end: Perform CHASSIS/WHEEL ALIGNMENT CHECK
