34 6 300 Brake piston tool
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2008 MINI Cooper, 2007 MINI Cooper, 2006 MINI Cooper, 2005 MINI Cooper, and 2004 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.
Minimum set: Mechanical tools
Note: For turning back brake piston when fitting new brake pads, disc brakes front and rear.
Series: R50, R53.
SI number: 1 05 01 (718).
Order number: 34 6 300 .

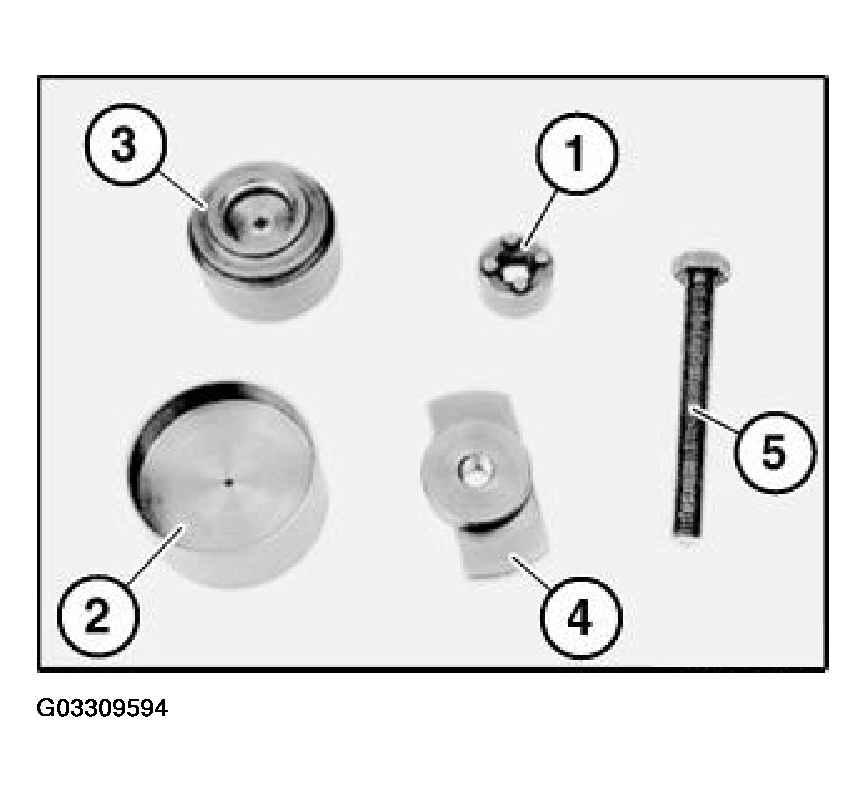

Brake piston tool.
Consisting of:
- = 34 6 301 Pin wrench.
Note: For rotating piston.
- = 34 6 302 Thrust sleeve.
Note: For fitting rubber sleeve (dia. 63).
- = 34 6 303 Thrust sleeve.
Note: For fitting rubber sleeve (dia. 54).
- = 34 6 304 Thrust sleeve.
Note: For pressing piston back.
- = 34 6 305 Screw.
Note: For pressing piston back.
- = 34 6 306 Nut.
- = 34 6 307 Plate.
- = 34 6 308 Spindle (M18x2.5).
