34 1 260 Brake lining measuring gauge

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2008 MINI Cooper, 2007 MINI Cooper, 2006 MINI Cooper, 2005 MINI Cooper, and 2004 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Minimum set: Mechanical tools

Note: For measuring brake lining thickness without removing wheels.

Series: E38, E39, E46, E52, E53, E60, E61, E63, E64, E65, E66, E67, E83, E85, E87, E90, R50, R53.

SI number: 1 12 95 (992).

Order number: 34 1 260 .

Brake lining measuring gauge.

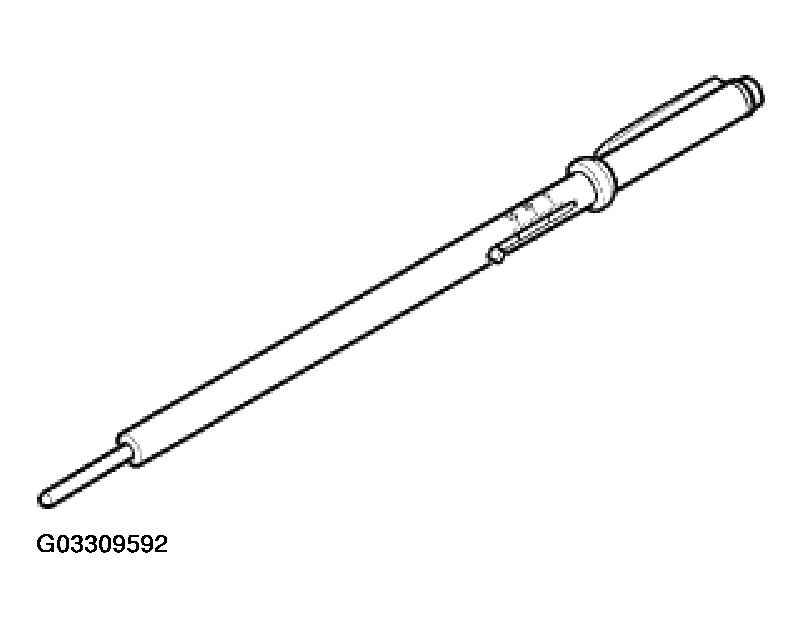

Fig 1: Identifying Special Tool 34 1 260 Brake Lining Measuring Gauge

Courtesy of BMW OF NORTH AMERICA, INC.
