11 13 020 Removing and installing/replacing lower oil sump section (S63 T 0)

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2018 BMW M6, 2018 BMW 650i xDrive, 2018 BMW 650i, 2018 BMW 640i xDrive, and 2018 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

RELEASE OIL DRAIN PLUG and drain engine oil.

Unlock plug connection on oil level sensor and disconnect.

Release screws (1) along line.

Tightening torque 11 13 3AZ .

Remove lower oil sump section.

Installation note:

Clean sealing surfaces.

Replace gasket.

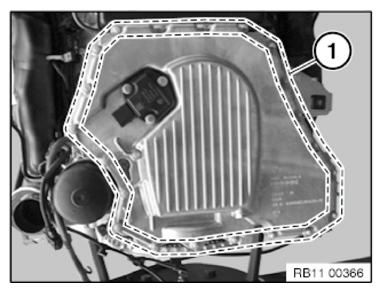

Fig 1: Identifying Lower Oil Sump Section Screws And Oil Level Sensor

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: When replacing oil sump bottom section:

Remount the oil condition sensor.
Renew the sealing ring of the oil condition sensor.
