11 14 151 Replacing crankshaft radial seal (N14)

Special tools required:

Necessary preliminary tasks:

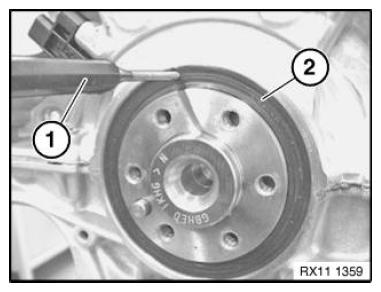

Break off PTFE ring (2) with a drift (1).

IMPORTANT: Risk of damage to crankcase and to crankshaft!

Fig 1: Breaking Off PTFE Ring Using Drift

Courtesy of BMW OF NORTH AMERICA, INC.

Secure special tool 11 9 611 with supplied screws (1) to crankshaft.

Fig 2: Securing Special Tool (11 9 611) With Supplied Screws To Crankshaft

Courtesy of BMW OF NORTH AMERICA, INC.

Position PTFE ring (1) with supporting ring (2) on special tool 11 9 611 .

Push PTFE ring (1) in direction of arrow over supporting ring (2) onto crankshaft.

Fig 3: Pushing PTFE Ring Over Supporting Ring Onto Crankshaft

Courtesy of BMW OF NORTH AMERICA, INC.

Attach special tool 11 9 612 .

Draw in PTFE ring with special tool 11 9 613 .

Fig 4: Installing PTFE Ring Using Special Tool (11 9 613)

Courtesy of BMW OF NORTH AMERICA, INC.

Screw in special tool 11 9 612 up to engine block.

Fig 5: Identifying Special Tool (11 9 612)

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.
