00 8 000 Hydraulic Puller Tool

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2008 MINI Cooper, 2007 MINI Cooper, 2006 MINI Cooper, 2005 MINI Cooper, and 2004 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

In conjunction with: With all previous removal/installation tools for rubber mounts.

Note: For removing and installing rubber mount in rear axle carrier.

Series: E12, E21, E23, E24, E28, E30, E30/C, E30tou, E31, E32, E32/3, E34, E34tou, E36, E36/2, E36/3, E36/5, E36/7, E36/C, E36tou, E38, E38/3, E39, E39PL, E39tou, E46, E46/16, E46/2, E46/3, E46/5, E46/C, E52, E53, E60, E61, E63, E64, E65, E66, E67, E83, E85, E87, R50, R52, R53, RR1.

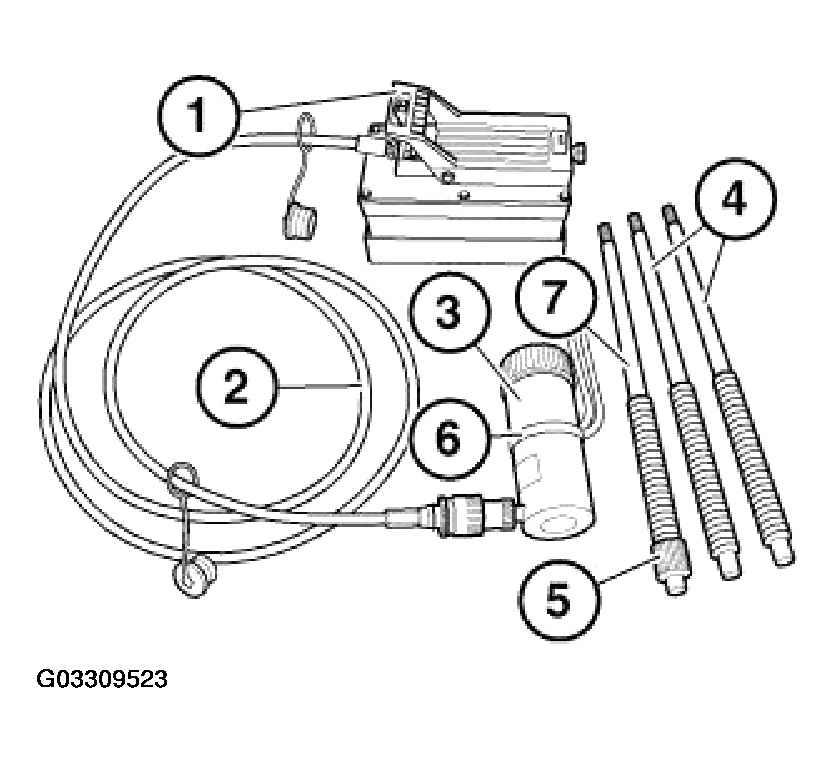

Fig 1: Identifying 00 8 000 Hydraulic Puller Tool

Courtesy of BMW OF NORTH AMERICA, INC.

Storage location: Single.

SI number: 1 02 99(417).

Order number: 00 8 000 .

Hydraulic puller tool.

Consisting of:

= 00 8 001 Hydraulic pump.
= 00 8 002 Hydraulic hose.
= 00 8 003 Hydraulic cylinder.
00 8 004 Threaded spindle.

Note: M14 x 520.

00 8 005 Threaded spindle.

Note: M12 x 496.

00 8 006 Threaded spindle (optional).

Note: M14 x 465.

00 8 007 Nut M18.

00 8 008 Securing line.

00 8 009 Spindle with nut.
