Removal & Installation

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2007 MINI Cooper, 2006 MINI Cooper, 2005 MINI Cooper, 2004 MINI Cooper, and 2003 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Do not twist handle during removal as this would cause the turning lock in the knob to shear off. Tug firmly to remove handle. To install, fit handle on shift lever, align and press on until noticeably into place. See Fig 1.

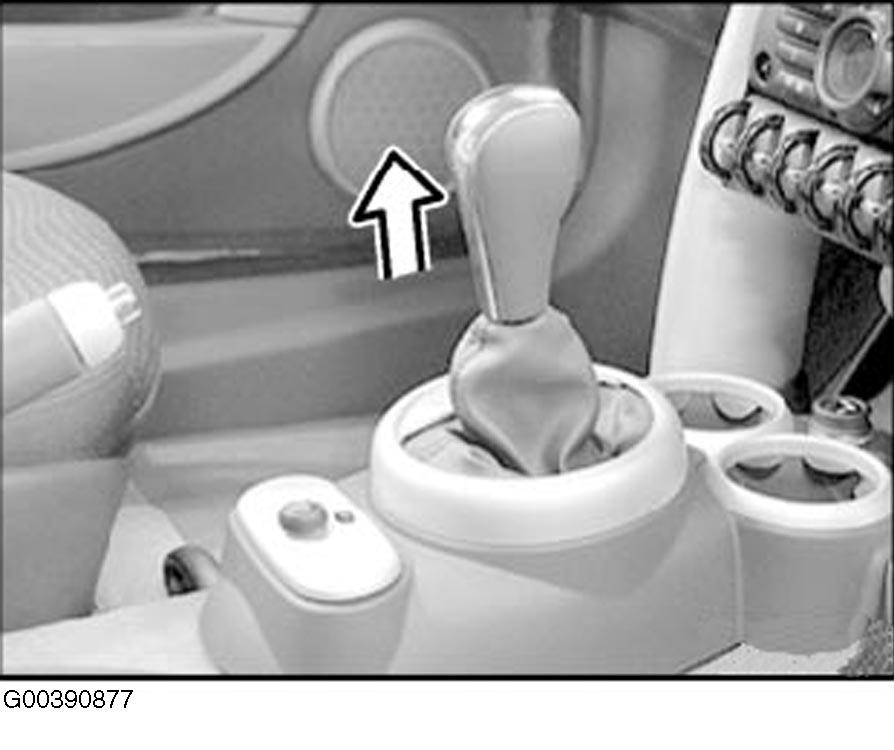

Fig 1: Removing Shift Lever Handle
G00390877Courtesy of BMW OF NORTH AMERICA, INC.
