Removal & Installation

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2008 MINI Cooper, 2007 MINI Cooper, 2006 MINI Cooper, 2005 MINI Cooper, and 2004 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

To remove an ear hose clamp, place special tool (32 1 260) at right angles to ear and cut ear open. See Fig 1 .

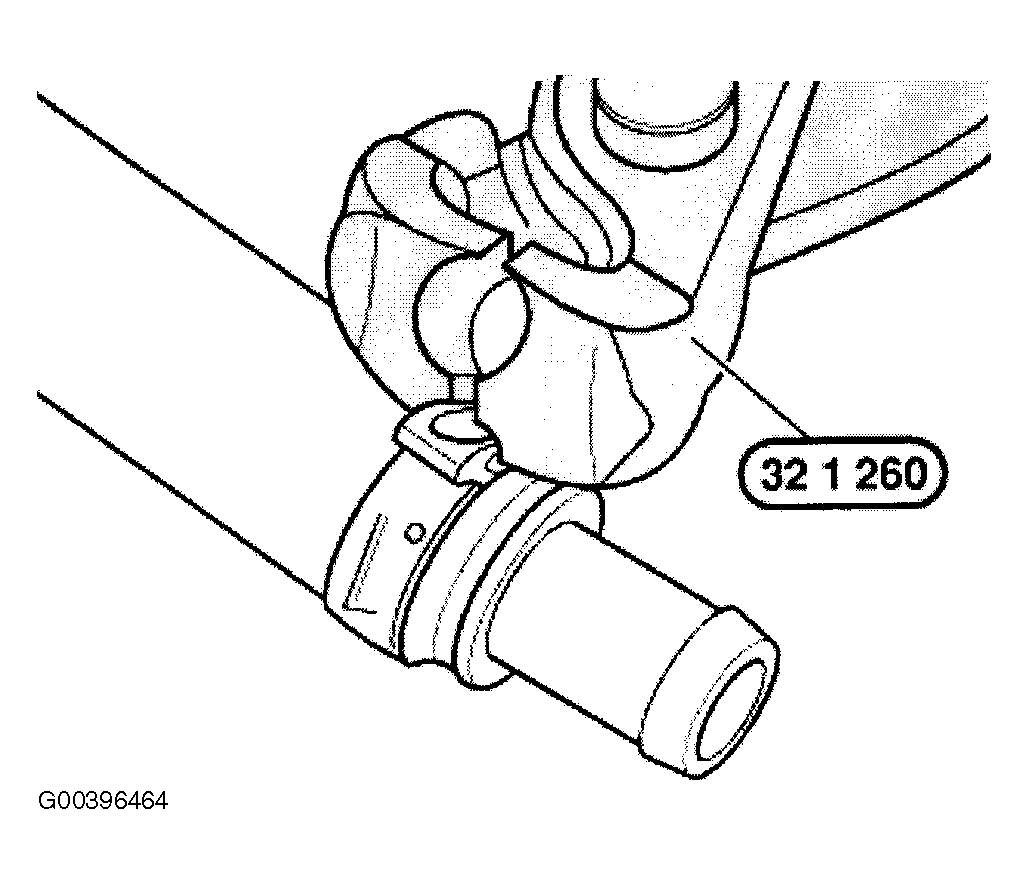

Fig 1: Removing Ear Hose Clamp

G00396464

Courtesy of BMW OF NORTH AMERICA, INC.

The ear hose clamp can be fitted not only axially but also radially after the hook fastener has been opened.

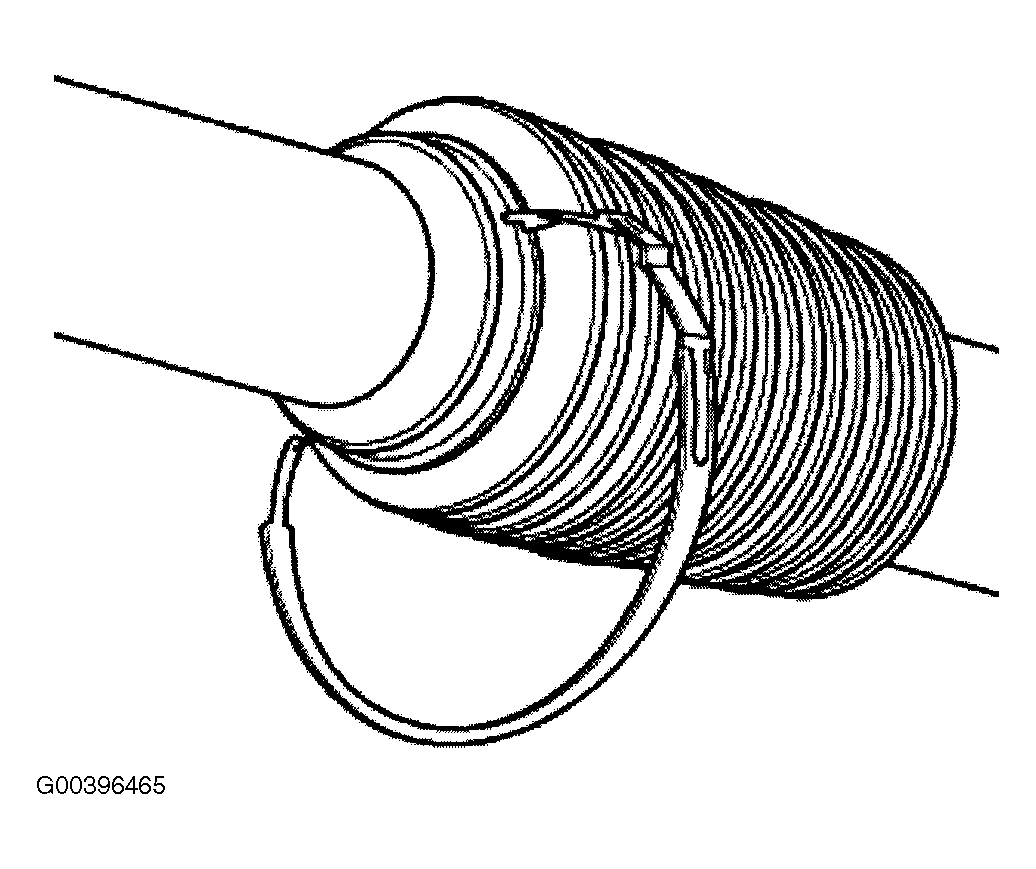

Fig 2: Installing Ear Hose Clamp

G00396465

Courtesy of BMW OF NORTH AMERICA, INC.

Attach hook fastener and press ear together with special tool (32 1 260). See Fig 3 .

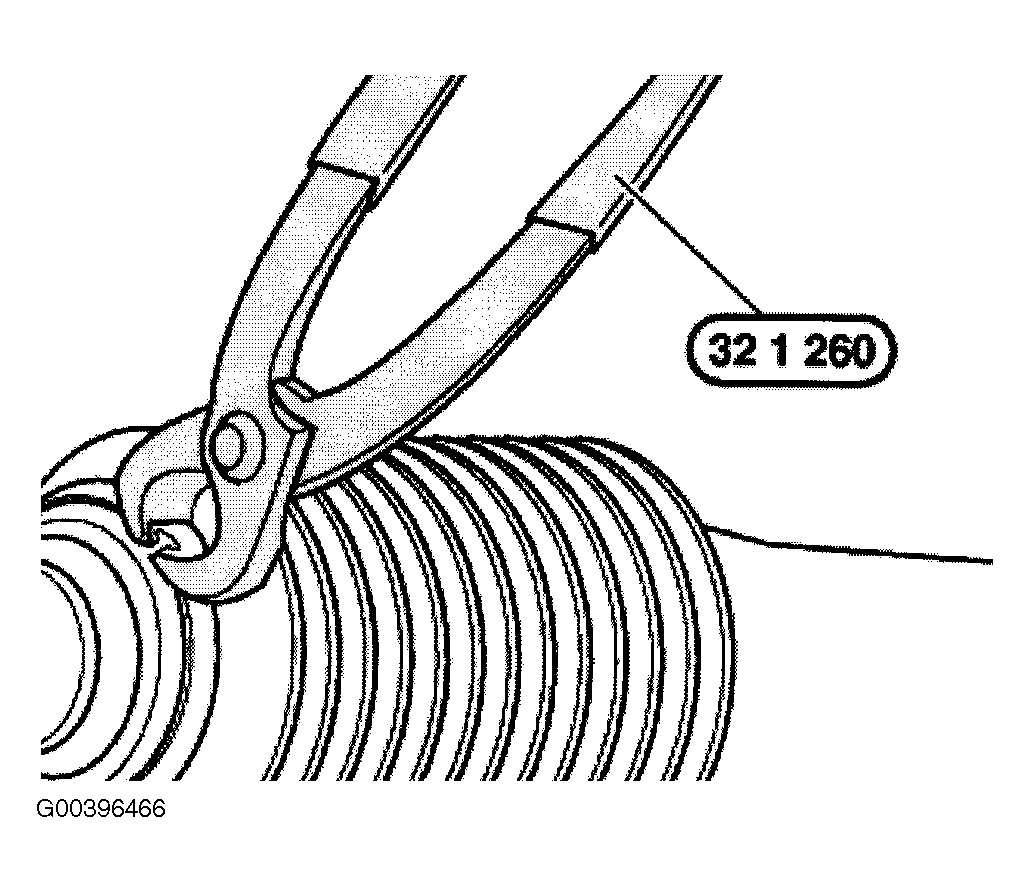

Fig 3: Attaching Hook Fastener

G00396466

Courtesy of BMW OF NORTH AMERICA, INC.

Side cutter of special tool (32 1 260) can be used in areas which are difficult to access. See Fig 4 .

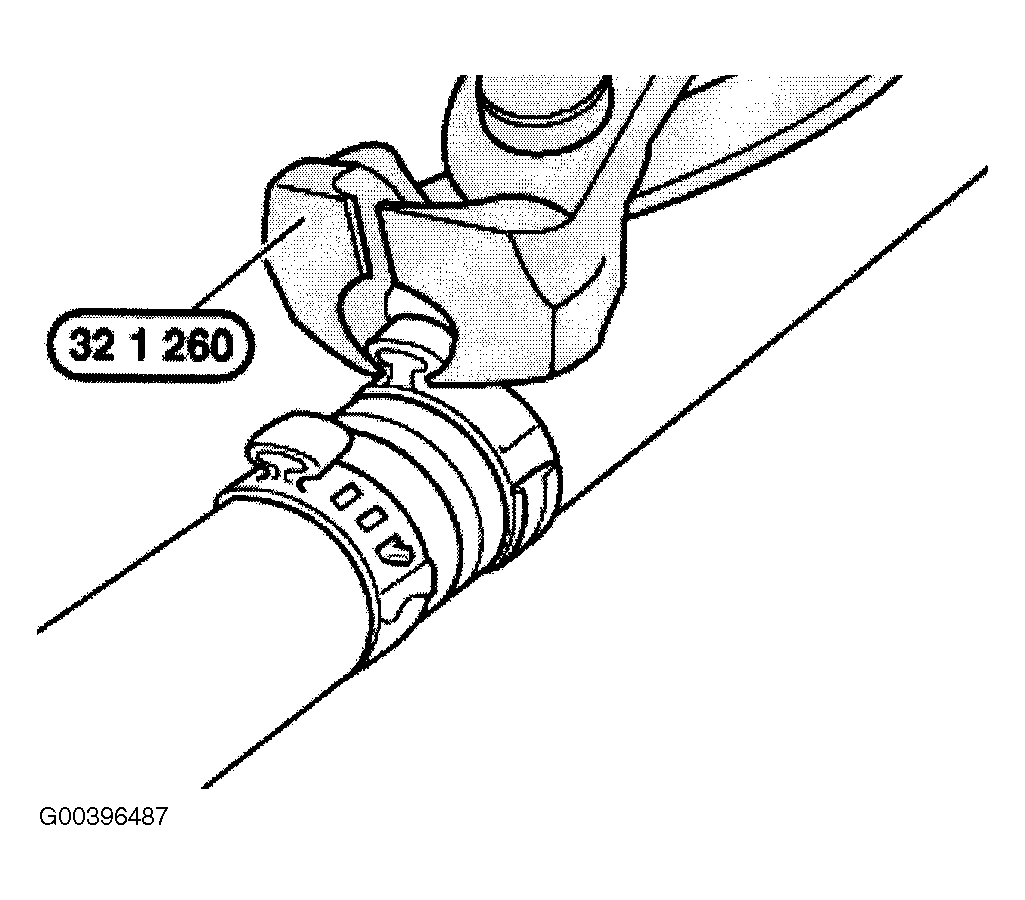

Fig 4: Slide Cutter Of Special Tool

G00396487

Courtesy of BMW OF NORTH AMERICA, INC.

Gap (A) maximum is 1 mm. See Fig 5 .

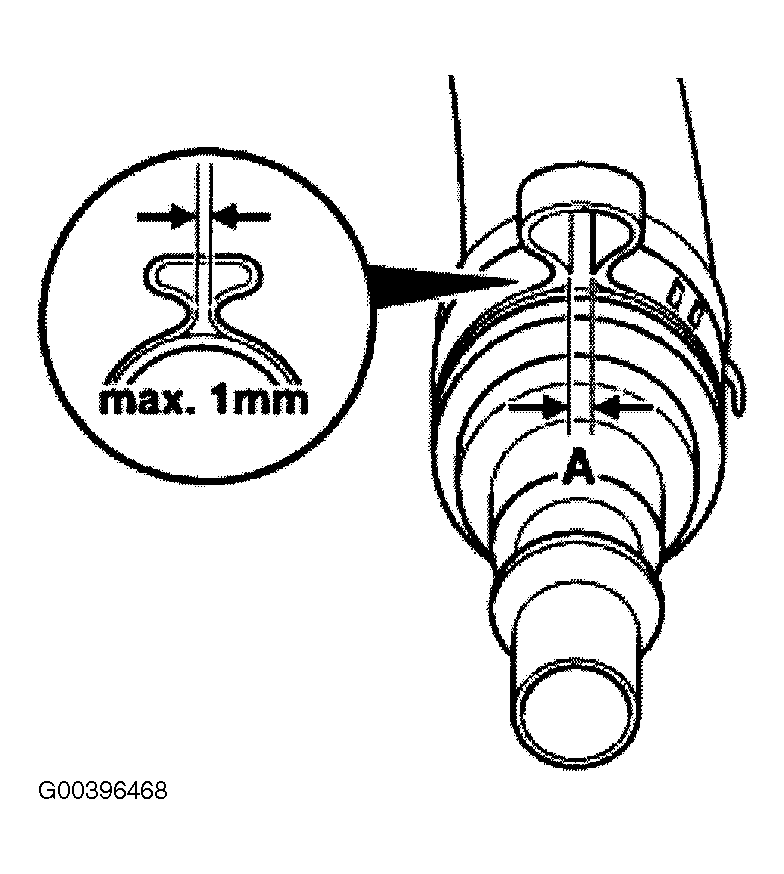

Fig 5: Identifying Gap (A)

G00396468

Courtesy of BMW OF NORTH AMERICA, INC.
