25 11 071 Replacing gearshift lever knob

Detach trim cover (1) in upward direction.

Fig 1: Detaching Trim Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Use suitable tool to release gaiter retainers (1).

Tug firmly to remove knob.

NOTE:

Do not twist knob during removal as this would cause the anti-twist lock in the knob to shear off.

Installation note:

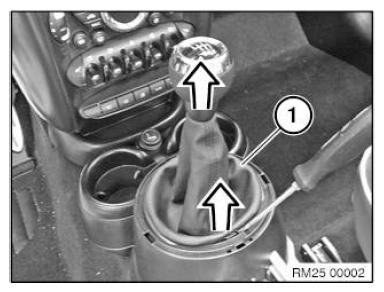

Fig 2: Releasing Gaiter Retainers Using Suitable Tool

Courtesy of BMW OF NORTH AMERICA, INC.

Fit knob on gearshift lever, align and press on until it snaps noticeably into place.

Pull gaiter over gearshift lever knob.

Release retaining lugs (1).

Detach gaiter (2) from gearshift lever knob.

Fig 3: Identifying Retaining Lugs And Gaiter

Courtesy of BMW OF NORTH AMERICA, INC.
