64 22 135 Removing and installing or replacing left fresh air grille
Necessary preliminary tasks:

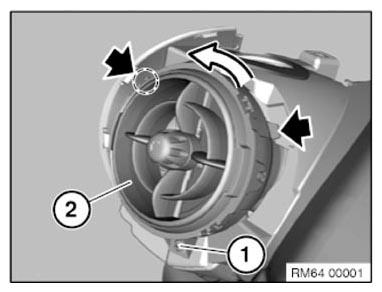

Release screw (1).
Disengage fresh air grille (2) in direction of arrow and take off.
Installation note:
The retaining lugs must be correctly locked at the marked positions.
