51 13 123 Removing and installing/replacing left cowl panel cover

Necessary preliminary tasks:

Remove seal (1) in the area of the cowl panel cover.

Unscrew nuts (2).

Detach cable assembly from holder (3).

Installation note:

Lay lines (4) correctly.

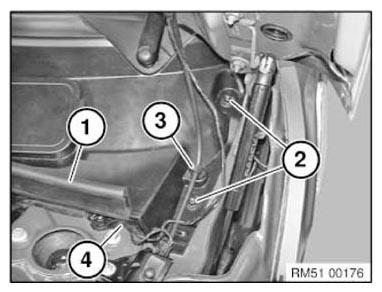

Fig 1: Identifying Seal, Nuts, Holder, And Lines

Courtesy of BMW OF NORTH AMERICA, INC.

Release cover (1) upwards from guides (2) and feed out towards front.

Fig 2: Identifying Left Cowl Panel Cover And Guides

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Ensure cover (3) is correctly seated.

Guides (1) and seal (2) on cover (3) must not be damaged.

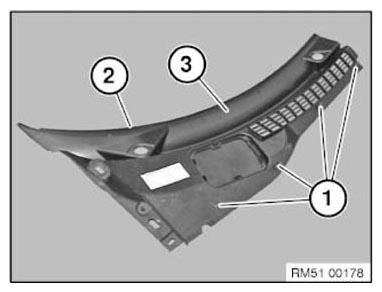

Fig 3: Identifying Guides And Seal On Cover

Courtesy of BMW OF NORTH AMERICA, INC.
