51 13 000 Removing and installing/replacing front grille center section

Release screws (1).

Tightening torque 51 13 6AZ .

Release front ornamental grille (2) out of the lower latch mechanisms (3) with a forceful pull forward.

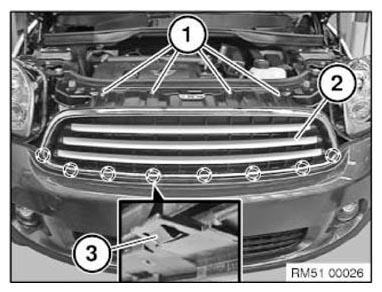

Fig 1: Identifying Front Ornamental Grille, Screws, And Lower Latch Mechanisms

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Latch mechanisms (1) must not be damaged.

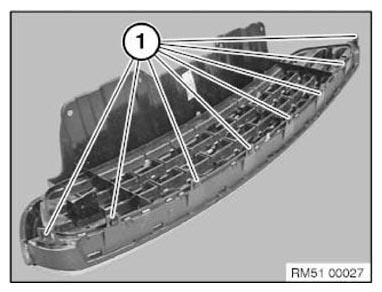

Fig 2: Identifying Latch Mechanisms

Courtesy of BMW OF NORTH AMERICA, INC.
