51 45 435 Removing and installing/replacing cover for instruments
Special tools required:
When working on trim panel components, make sure that visible surfaces are not scratched or damaged (e.g. by sharp-edged tools).

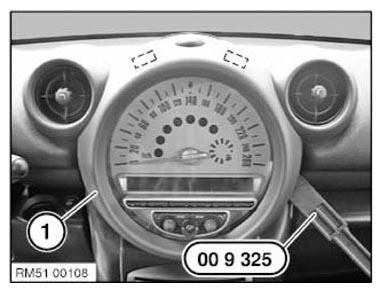

Carefully lever out instruments cover (1) with special tool 00 9 325 .
Installation note:
Ensure that the instrument cover (1) is correctly engaged in the marked area.

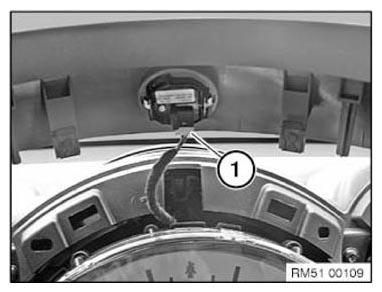

Disconnect plug connection (1).
Installation note:

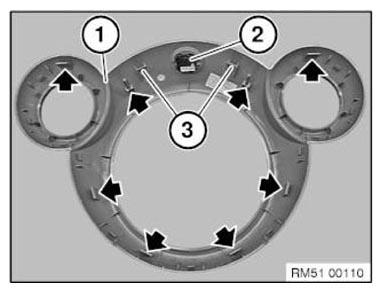

Retaining clips (3), marked retaining pins and retaining tabs on instrument cover (1) must not be damaged or missing.
Replacement
Modify SWITCH FOR HAZARD WARNING FLASHERS (2).
