51 71 412 Removing and installing/replacing rear spoiler

Necessary preliminary tasks:

Lever out seal plugs (1) and release screws underneath.

Tightening torque 51 71 7AZ .

Unfasten screws (2).

Tightening torque 51 71 7AZ .

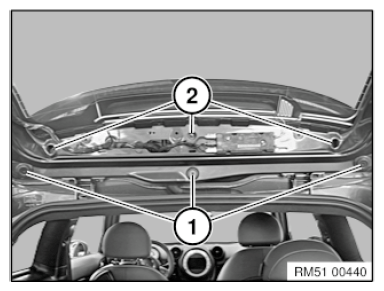

Fig 1: Identifying Seal Plugs And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Detach rear spoiler (1) in upward direction from clips (2).

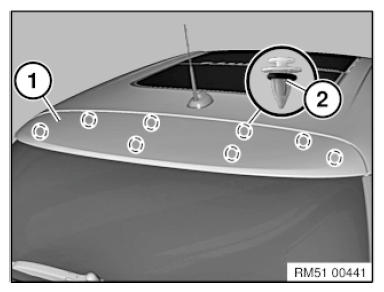

Fig 2: Detaching Rear Spoiler From Clips

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Replace faulty clips (1).

Check welded connection of inner and outer shells are free of damage (visual inspection).

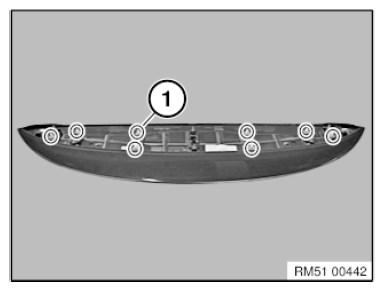

Fig 3: Identifying Clips

Courtesy of BMW OF NORTH AMERICA, INC.

Guide (1), bolts (2) and gaskets (3) must not be damaged or missing.

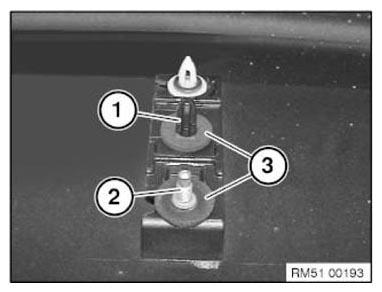

Fig 4: Identifying Guide, Bolts And Gaskets

Courtesy of BMW OF NORTH AMERICA, INC.
