51 21 170 Removing and installing or replacing outer door handle from left or right front door

Necessary preliminary tasks:

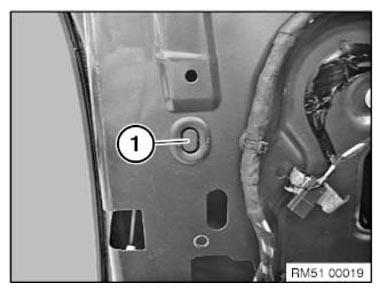

Lever out seal plugs (1).

Fig 1: Identifying Seal Plugs

Courtesy of BMW OF NORTH AMERICA, INC.

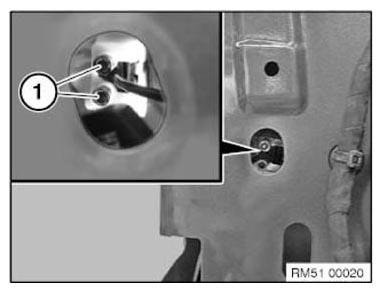

Release screws (1) from lock barrel housing or retaining element (see also next operation).

Tightening torque 51 21 1AZ .

Fig 2: Identifying Lock Barrel Housing And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

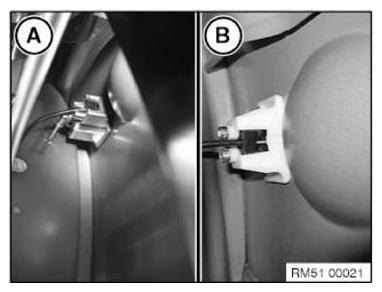

NOTE: Version

A = Driver's side with lock barrel housing

B= Passenger's side with retaining element

Fig 3: Identifying Lock Barrel Housing And Retaining Element

Courtesy of BMW OF NORTH AMERICA, INC.

Version with Comfort Access:

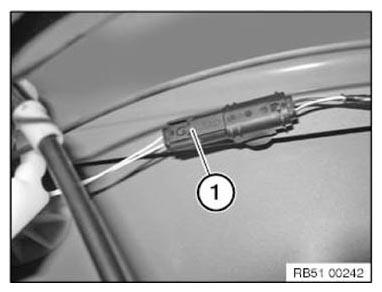

Unfasten plug connection (1) and disconnect.

Fig 4: Identifying Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

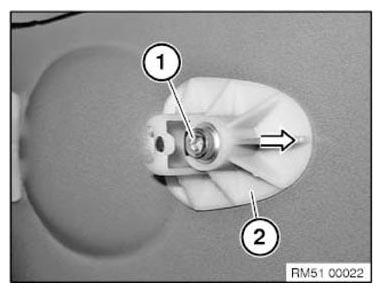

Slacken front bolt (1) on outer door handle until the retaining element (2) can be removed from the front.

Tightening torque 51 21 1AZ .

Fig 5: Removing Door Handle

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Shown removed here for purposes of clarity.

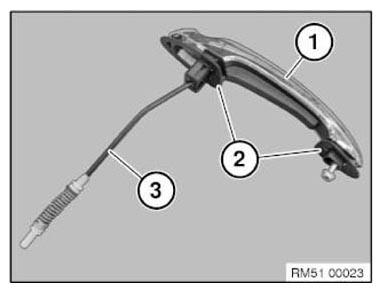

Feed outer door handle (1) with Bowden cable (3) out of the door.

Installation note:

Rubber seals (2) of outer door handle (1) must not be missing or damaged.

Fig 6: Identifying Outer Door Handle, Bowden Cable, And Rubber Seals

Courtesy of BMW OF NORTH AMERICA, INC.
