51 11 180 Removing and installing/replacing ornamental grille in bumper panel

Necessary preliminary tasks:

• Remove FRONT BUMPER PANEL

Release latch mechanisms (1) and remove ornamental grille (2).

Installation note:

Latch mechanisms (1) on grille and bumper panel must not be damaged.

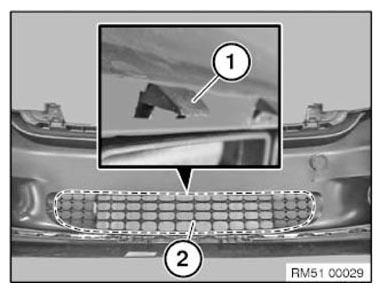

Fig 1: Identifying Ornamental Grille And Latch Mechanisms

Courtesy of BMW OF NORTH AMERICA, INC.
