51 14 110 Removing and installing/replacing rear model designation
IMPORTANT:
The INSTRUCTIONS FOR ADHERING BADGE EMBLEM serve as the basis for these repair instructions and must be followed without fail.
Installation dimensions:

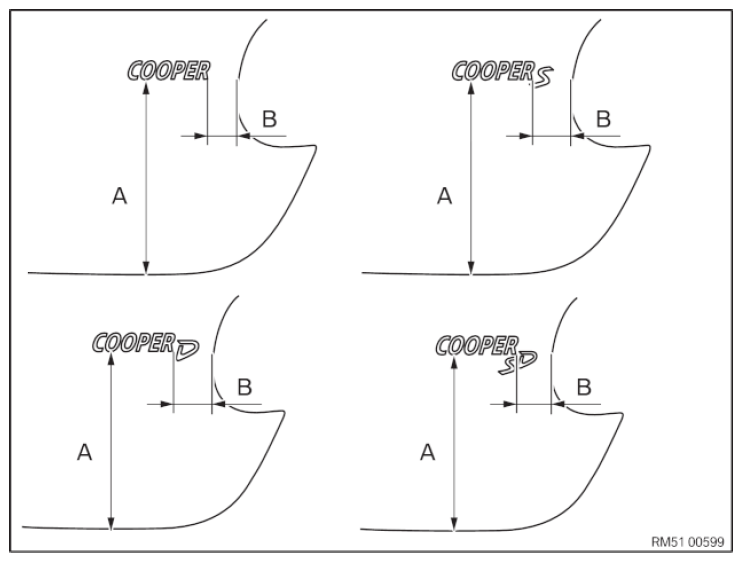

Mark position of model designation with adhesive tape using dimensions (A and B).
Position model designation on mark and stick on.
| A | B | |
|---|---|---|
| Cooper | 328 mm | 52 mm |
| Cooper S | 328 mm | 64 mm |
| Cooper D | 328 mm | 73 mm |
| Cooper SD | 328 mm | 64 mm |

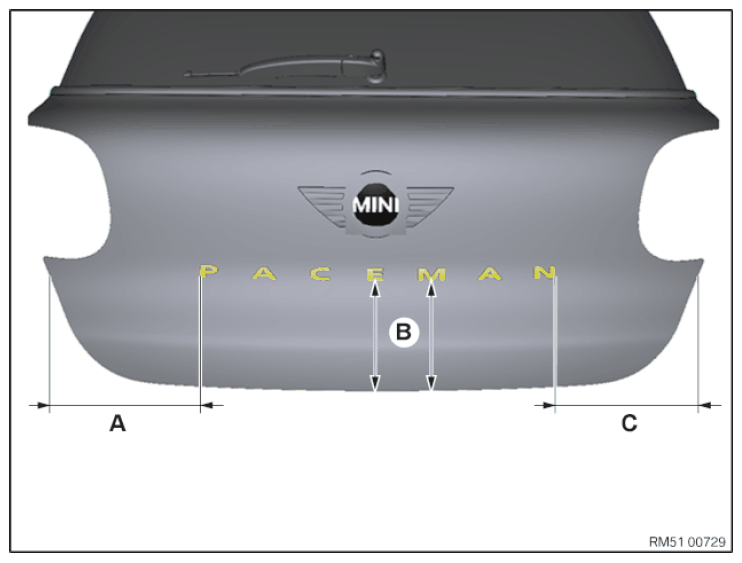

Mark position of model designation with adhesive tape using dimensions (A to C).
Position model designation on mark and stick on.
| A | 300 mm |
| B | 194 mm |
| C | 290 mm |
