52 26 015 Removing and installing/replacing backrest for left or right rear seat
Necessary preliminary tasks:
- Remove REAR SEAT
- Partially remove the BACKREST COVER in the lower area

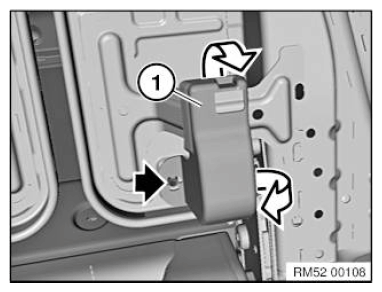

Unclip cover (1) for unlocking.
Installation note:
Retaining lugs must not be damaged.
If necessary, replace cover for unlocking.

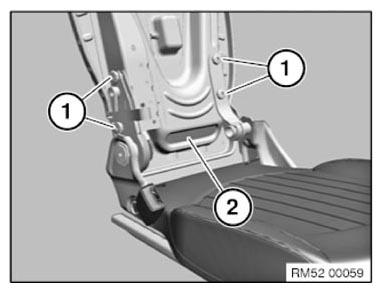

Release screws (1).
Tightening torque 52 26 12AZ .
Remove backrest (2) from seat frame.
Replacement only:
- Remove complete BACKREST COVER
- Remove REAR PANEL
