63 31 265 Removing and installing/replacing LED for rear center rail

Necessary preliminary tasks:

• Remove REAR CONSOLE COVER IN THE REAR

Unfasten plug connection (1) and disconnect.

Carefully pull off the LED for the center rail (2) from the fibre optic conductor (3).

Installation note:

The LED for the center rail (2) must be felt to snap into place in the fibre-optic conductor (3).

The fibre-optic conductor (3) must not be damaged.

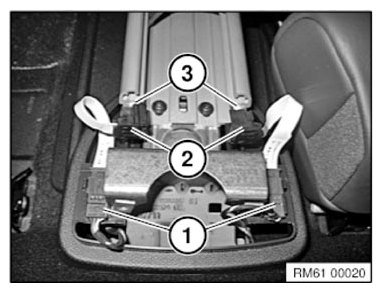

Fig 1: Identifying Rear Center Rail, Plug Connection And Fiber Optic Conductor

Courtesy of BMW OF NORTH AMERICA, INC.
