65 77 720 Removing and installing/replacing left B-pillar sensor

WARNING: Comply with AIRBAG SAFETY INFORMATION .
Incorrect handling can activate airbag and cause injury.

Necessary preliminary tasks:

Slacken bolt (1).

Release screw (2).

Tightening torque 65 77 3AZ .

Feed out sensor (3).

Fig 1: Identifying Left B-Pillar Sensor Bolt And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten plug connection (1) and disconnect.

Remove sensor (2).

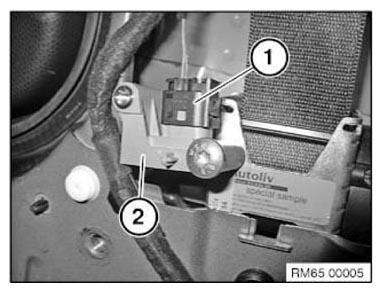

Fig 2: Identifying Left B-Pillar Sensor And Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.
